Belt Conveyor
Efficient and Versatile Material Handling Solution
The Belt Conveyor is a widely used bulk material transport system designed for horizontal or inclined conveying of a broad range of materials. It consists of a continuous belt loop supported by pulleys and rollers, providing smooth, reliable, and cost-effective transfer of materials in industries such as food processing, manufacturing, mining, packaging, and logistics.
Key Features
Versatile Material Handling
Suitable for powders, granules, packaged goods, and bulky items.
Customizable Length & Width
Designed to fit specific plant layouts and capacity requirements.
Durable Construction
Frames made from MS, SS, or aluminum with abrasion-resistant belts.
Variable Speed Control
Allows adjustment for optimal process flow.
Inclined & Declined Options
Handles inclines up to 30° with specialized cleated belts.
Easy Maintenance
Quick belt replacement and accessible tensioning systems.
Safety Features
Emergency stops, guards, and sensors for operator safety.
Energy Efficient
Low power consumption with high throughput.
Technical Specifications
Parameter | Details |
---|---|
Conveyor Length | Up to 100 meters (customizable) |
Belt Width | 200 mm to 2000 mm |
Belt Types | PVC, Rubber, PU, Food-grade belts |
Frame Material | Mild Steel (powder-coated), Stainless Steel 304/316 |
Motor Power | 0.5 HP to 20 HP (based on load & length) |
Speed Range | 0.5 m/s to 3 m/s |
Load Capacity | Up to 50,000 kg/hr (varies with material and belt width) |
Drive Options | Gear motor, frequency inverter controlled |
Applications of Belt Conveyor
Food Processing
Conveying raw materials, packaged foods, bakery products.
Packaging Industry
Transporting cartons, boxes, and palletized goods.
Mining & Minerals
Moving ores, coal, and aggregates.
Pharmaceutical Industry
Transporting bottles, capsules, and powders.
Manufacturing
Assembly line integration and component transport.
Get Started Today - Explore Our Solutions!

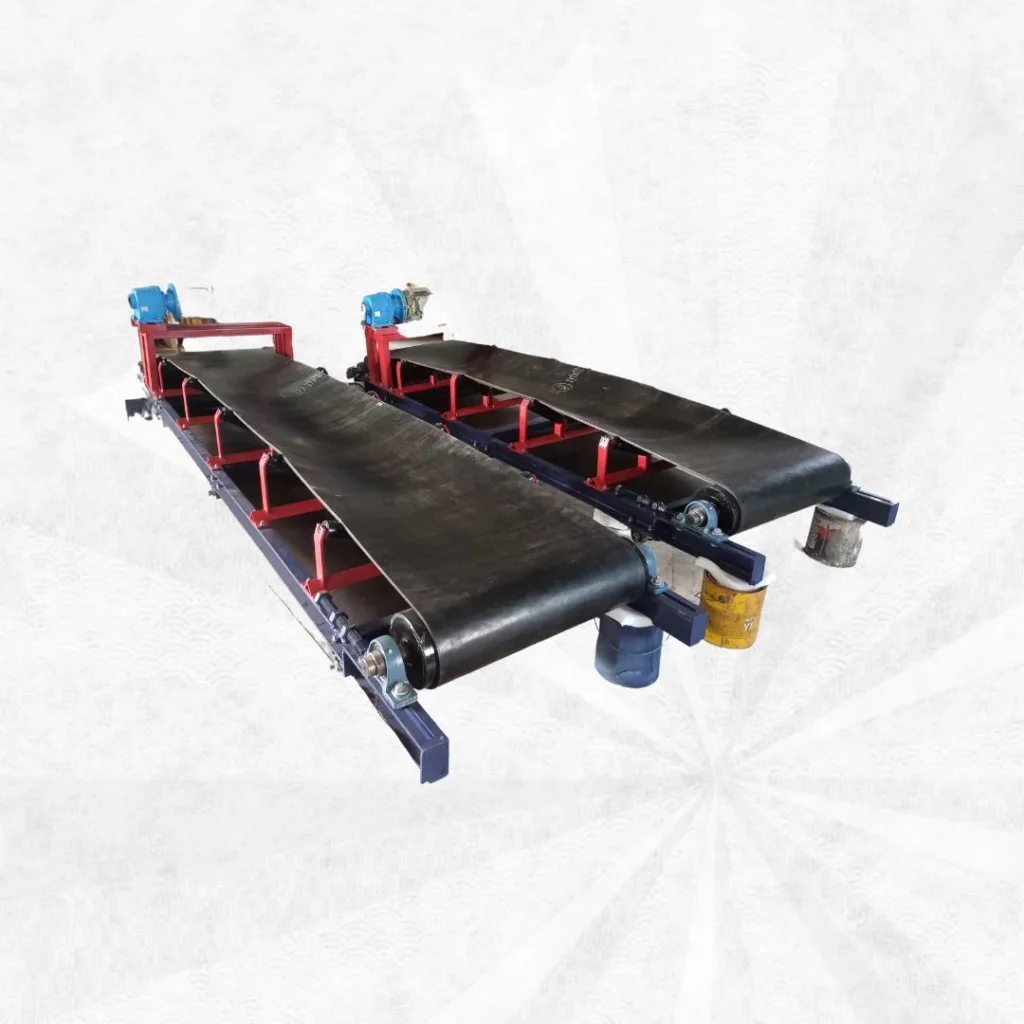

Flat Belt Conveyor
Smooth and Reliable Horizontal Material Handling Solution
The Flat Belt Conveyor is a versatile and widely used conveyor system designed for efficient horizontal transport of various bulk and packaged materials. Featuring a flat, continuous belt surface, it ensures stable and uniform movement of goods with minimal spillage, making it ideal for industries like food processing, manufacturing, logistics, and packaging.
Key Features
Flat Belt Surface
Provides stable, smooth transport for diverse materials including boxes, cartons, bags, and bulk items.
Custom Belt Widths & Lengths
Designed to meet specific application and space requirements.
Durable and Flexible Belts
Available in PVC, rubber, PU, and food-grade materials.
Adjustable Speed Control
Enables precise handling for different process speeds.
Low Noise Operation
Suitable for indoor and cleanroom environments.
Safety Features
Emergency stops, guards, and safety sensors for operator protection.
Technical Specifications
Parameter | Details |
---|---|
Belt Width | 300 mm to 1500 mm |
Conveyor Length | Up to 50 meters (customizable) |
Belt Material | PVC, Rubber, PU, Food-grade PU |
Frame Material | Powder-coated MS, Stainless Steel 304/316 |
Motor Power | 0.5 HP to 10 HP |
Speed Range | 0.1 m/s to 3 m/s |
Load Capacity | Up to 20,000 kg/hr (depends on belt width and material) |
Drive Type | Gear motor with variable frequency drive (VFD) |
Applications of Flat Belt Conveyor
Food & Beverage
Transporting packaged foods, trays, bottles, and ingredients.
Manufacturing
Moving components, assemblies, and finished goods.
Packaging
Cartons, boxes, and parcel handling.
Logistics & Warehousing
Sorting and distribution lines.
Pharmaceuticals
Conveying medicine packets, bottles, and blister packs.
Get Started Today - Explore Our Solutions!
Cleated Belt Conveyor
Efficient Inclined and Vertical Bulk Material Handling
The Cleated Belt Conveyor is specially designed for transporting bulk materials on inclines or vertical lifts where standard flat belts cannot effectively carry the load without spillage or rollback. Equipped with regularly spaced cleats (raised sections) on the belt surface, it securely holds loose, granular, or small lump materials, preventing them from sliding back during incline conveying.
Key Features
Cleated Belt Design
Raised cleats prevent material rollback on steep inclines or vertical lifts.
Incline Capability
Efficiently handles inclines up to 90°, ideal for vertical and steeply inclined transport.
Durable Belt Materials
Available in PVC, rubber, or PU with high abrasion resistance.
Custom Cleat Height & Spacing
Adjustable to suit the specific bulk material characteristics.
Robust Frame Construction
MS or stainless steel frames designed for heavy-duty use.
Low Maintenance
Easy belt replacement and minimal downtime.
Optional Sidewalls
For additional containment of fine or powdery materials.
Variable Speed Control
Adjustable belt speed for optimized throughput.
Technical Specifications
Parameter | Details |
---|---|
Parameter | 300 mm to 1500 mm (customizable) |
Conveyor Length | Up to 60 meters |
Cleat Height | 10 mm to 100 mm (depending on material) |
Belt Material | PVC, Rubber, PU (food-grade options available) |
Incline Angle | Up to 90° (vertical) |
Motor Power | 1 HP to 15 HP |
Load Capacity | Up to 30,000 kg/hr |
Drive Type | Gear motor with VFD for speed control |
Applications of Cleated Belt Conveyor
Food Processing
Transporting grains, pulses, snacks, and confectionery.
Agriculture
Handling seeds, fertilizers, and animal feed
Packaging & Sorting
Inclined transfer of packaged goods and components.
Mining & Minerals
Conveying ores, coal, sand, and gravel.
Chemical Industry
Transporting powders, granules, and pellets.
Get Started Today - Explore Our Solutions!

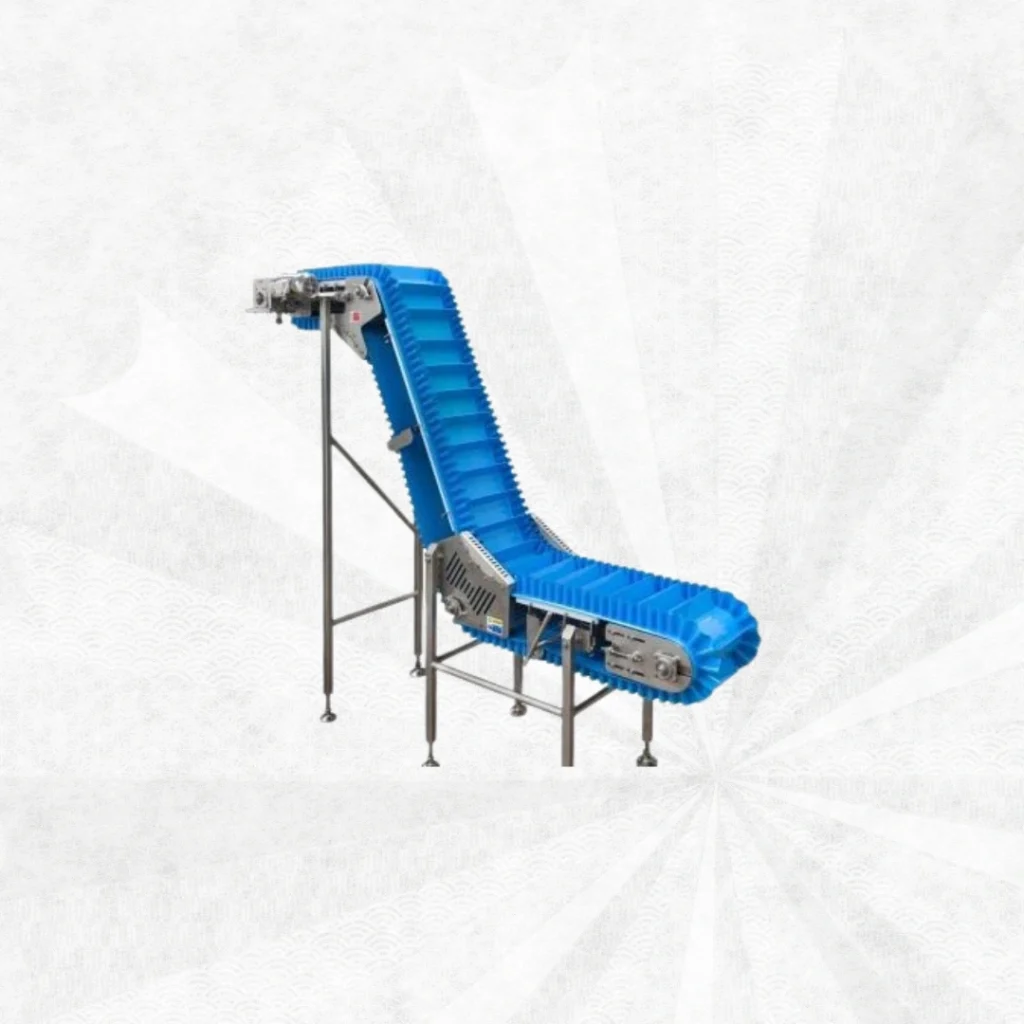

Sidewall Belt Conveyor
Efficient Bulk Material Handling on Steep Inclines
The Sidewall Belt Conveyor is designed to transport bulk materials vertically or on steep inclines, where traditional flat belt conveyors cannot handle materials without spillage. Equipped with vertical sidewalls and cleats molded into the belt, it securely contains loose, granular, or powdery materials, enabling smooth, high-capacity lifting in compact spaces.

Key Features
Vertical Sidewalls & Cleats
Prevent material spillage and rollback on steep inclines.
Steep & Vertical Conveying
Handles inclines up to 90° (vertical lifts).
Durable Belt Material
Made from heavy-duty PVC, rubber, or PU for abrasion resistance.
Customizable Sidewall Height & Cleat Spacing
Tailored for specific material characteristics.
Enclosed Conveyor Design
Minimizes dust and contamination.
Robust Frame Construction
Mild steel or stainless steel frames with powder coating.
Variable Speed Drive
Optimizes throughput based on material and process requirements.
Easy Maintenance
Modular belt design for quick repairs and replacements.
Technical Specifications
Parameter | Details |
---|---|
Belt Width | 300 mm to 1500 mm (custom sizes available) |
Conveyor Length | Up to 50 meters or more (customizable) |
Sidewall Height | 30 mm to 150 mm |
Cleat Height | 10 mm to 100 mm |
Belt Material | PVC, Rubber, PU (Food-grade options available) |
Incline Angle | Up to 90° (vertical) |
Load Capacity | Up to 30,000 kg/hr (depending on belt width & speed) |
Motor Power | 1 HP to 15 HP |
Drive Type | Gear motor with VFD speed control |
Applications of Sidewall Belt Conveyor
Agriculture
Conveying grains, seeds, fertilizers.
Food Processing
Handling snacks, pulses, sugar, flour.
Chemical Industry
Transporting powders, granules, and pellets.
Mining & Minerals
Moving ores, coal, sand, and gravel.
Recycling & Waste Management
Conveying sorted materials on steep inclines.
Get Started Today - Explore Our Solutions!
Curved Belt Conveyor
Seamless Material Transfer Around Corners & Tight Spaces
The Curved Belt Conveyor is designed to efficiently transport materials along curved paths, allowing smooth and continuous flow in compact or complex plant layouts. It enables conveyors to change direction without stopping or transferring the load, improving space utilization and process efficiency in industries like food processing, packaging, logistics, and manufacturing.
Key Features
Smooth Curve Design
Enables 90°, 45°, or custom angle turns without product spillage.
Stable Material Handling
Flat or cleated belts securely transport goods through curves.
Custom Curve Radius
Designed to fit specific space constraints and product types.
Durable Belt Materials
PVC, rubber, or PU belts with abrasion resistance.
Compact Construction
Ideal for tight plant layouts and space optimization.
Variable Speed Control
Synchronizes with straight conveyors for seamless transfer.
Low Maintenance
Easy belt replacement and minimal downtime.
Safety Features
Guards and emergency stops for operator protection.
Technical Specifications
Parameter | Details |
---|---|
Belt Width | 300 mm to 1500 mm |
Curve Radius | Minimum 600 mm (customizable) |
Conveyor Length | Up to 30 meters per curved section |
Belt Material | PVC, Rubber, PU (food-grade available) |
Load Capacity | Up to 20,000 kg/hr |
Motor Power | 1 HP to 10 HP |
Speed Range | 0.1 m/s to 2.5 m/s |
Frame Material | Powder-coated MS or Stainless Steel 304/316 |
Applications of Curved Belt Conveyor
Food Processing
Moving packaged goods, bakery items, snacks around production lines.
Packaging
Changing direction in carton or parcel conveying.
Logistics & Warehousing
Sorting lines with multiple directional changes.
Pharmaceutical
Transporting medicine packs through compact plant layouts.
Manufacturing
Assembly lines requiring material flow changes without interruption.
Get Started Today - Explore Our Solutions!
Troughed Belt Conveyor
Efficient Bulk Material Handling with Enhanced Load Capacity
The Troughed Belt Conveyor is designed to transport loose bulk materials efficiently over long distances with minimal spillage. The belt is supported by rollers arranged in a trough shape, allowing it to carry a larger volume of material securely while maintaining smooth movement. This conveyor type is ideal for industries handling granular or powdered materials such as agriculture, mining, and food processing.

Key Features

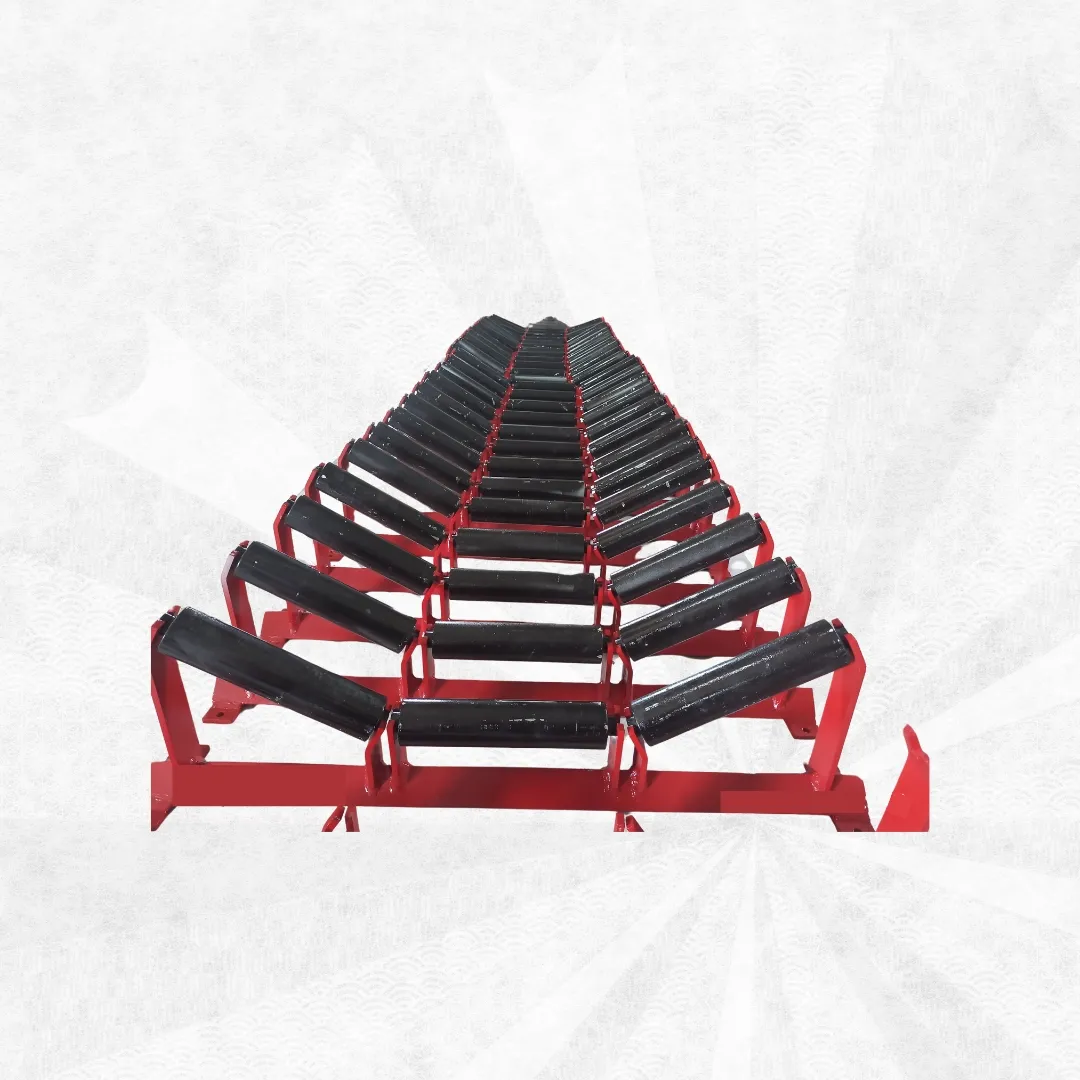

Trough-Shaped Belt Support
Rollers form a V-shaped trough, increasing material-carrying capacity.
Wide Belt Options
Suitable for handling heavy loads and bulk materials.
Durable Belt Material
Made from abrasion-resistant rubber or PVC belts.
Robust Frame Construction
Heavy-duty steel frames designed for stability and long service life.
Variable Speed Control
Allows adjustment of conveyor speed for process optimization.
Low Maintenance
Easy roller replacement and belt adjustment.
Customizable Trough Angle
Typically 20° to 40°, adjustable to material needs.
Suitable for Long Conveying Distances
Efficient for horizontal and slightly inclined transport.
Technical Specifications
Parameter | Details |
---|---|
Belt Width | 400 mm to 2000 mm |
Conveyor Length | Up to 100 meters or more (customizable) |
Trough Angle | 20°, 30°, 35°, or 40° |
Belt Material | Rubber, PVC (abrasion-resistant) |
Load Capacity | Up to 50,000 kg/hr |
Motor Power | 1 HP to 20 HP |
Speed Range | 0.2 m/s to 3 m/s |
Frame Material | Powder-coated mild steel or stainless steel |
Applications of Troughed Belt Conveyor
Agriculture
Transporting grains, seeds, and fertilizers.
Mining & Minerals
Conveying ores, coal, sand, and gravel.
Food Processing
Moving bulk ingredients like sugar, flour, and pulses.
Chemical Industry
Handling powders, granules, and bulk solids.
Construction
Transporting sand, cement, and aggregates.
Get Started Today - Explore Our Solutions!
Aluminium Frame Belt Conveyor
Lightweight, Durable, and Corrosion-Resistant Conveying Solution
The Aluminium Frame Belt Conveyor offers a robust yet lightweight conveyor system designed for easy installation, mobility, and maintenance. The corrosion-resistant aluminium frame makes it ideal for environments where hygiene, cleanliness, and resistance to rust are critical, such as food processing, pharmaceuticals, electronics, and packaging industries.
Key Features
Lightweight Aluminium Frame
Easy to install, move, and clean.
Corrosion Resistant
Ideal for humid, wet, or corrosive environments.
Modular Design
Flexible lengths and widths to suit various layouts.
Durable Belt Options
Compatible with PVC, PU, or rubber belts based on application.
Smooth and Quiet Operation
Low noise levels with efficient motor drives.
Easy Maintenance
Quick belt replacement and adjustable tensioning.
Sanitary Construction
Suitable for food-grade and pharmaceutical applications.
Customizable Accessories
Side guards, rollers, and variable speed drives available.
Technical Specifications
Parameter | Details |
---|---|
Frame Material | Anodized Aluminium Alloy |
Belt Width | 200 mm to 1500 mm |
Conveyor Length | Customizable, typically up to 30 meters |
Belt Material | PVC, PU, Rubber (food-grade options) |
Load Capacity | Up to 500 kg/m (depending on belt and frame size) |
Motor Power | 0.5 HP to 5 HP |
Speed Range | 0.1 m/s to 3 m/s |
Drive Type | Gear motor with variable speed control |
Operating Environment | Suitable for clean rooms, wet areas, and food processing zones |
Applications of Aluminium Frame Belt Conveyor
Food & Beverage Industry
Bakery, confectionery, packaged foods.
Pharmaceutical
Tablet and capsule handling, packaging lines.
Electronics Manufacturing
Component assembly and inspection.
Packaging
Light to medium weight carton and product conveying.
Clean Room Environments
Suitable for contamination-sensitive areas.
Get Started Today - Explore Our Solutions!

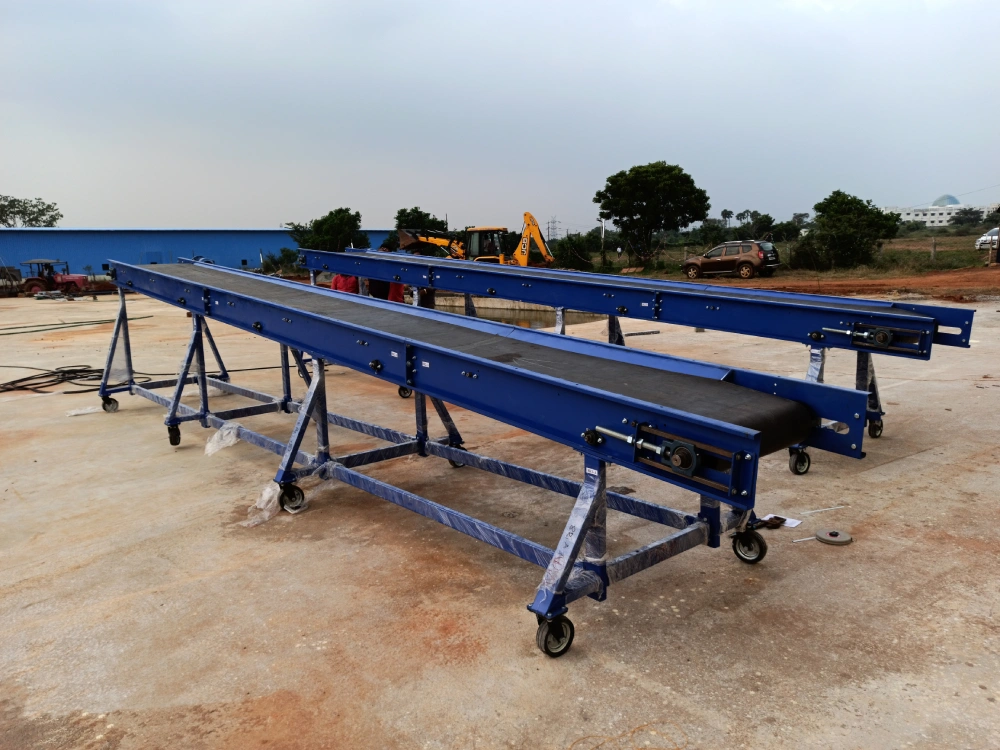

Portable Belt Conveyor
Flexible and Mobile Material Handling Solution
The Portable Belt Conveyor is designed for quick setup and easy relocation, providing versatile material transport where fixed conveyors are impractical. Its lightweight construction and mobility features make it ideal for temporary operations, warehousing, logistics, and construction sites requiring efficient material flow without permanent installation.

Key Features
Lightweight and Compact Design
Easy to transport and reposition.
Wheels and Handles
For effortless mobility on-site.
Adjustable Height and Angle
Flexible positioning to fit various loading/unloading points.
Durable Belt Materials
Suitable for a wide range of products, from loose materials to packaged goods.
Quick Assembly and Disassembly
Minimal tools required, reducing setup time.
Robust Frame Construction
Powder-coated steel or aluminum for durability.
Variable Speed Control
Adjust conveyor speed to match workflow requirements.
Safety Features
Emergency stop buttons and safety guards included.
Technical Specifications
Parameter | Details |
---|---|
Belt Width | 300 mm to 1200 mm |
Conveyor Length | 2 m to 10 m (adjustable or telescopic models available) |
Belt Material | PVC, Rubber, PU (food-grade options available) |
Load Capacity | Up to 1000 kg/hr (depends on belt width and speed) |
Frame Material | Powder-coated steel or aluminum alloy |
Mobility | Equipped with swivel wheels and handles |
Motor Power | 0.5 HP to 3 HP |
Speed Range | 0.1 m/s to 2 m/s |
Adjustable Height | Typically 600 mm to 1200 mm |
Applications of Portable Belt Conveyor
Warehousing and Distribution
Loading/unloading trucks and sorting areas.
Construction Sites
Transporting building materials quickly and efficiently.
Temporary Production Lines
Flexible conveyor needs during short-term projects.
Agriculture
Moving harvested crops or seeds.
Food Processing
Temporary or supplemental product transport.
Get Started Today - Explore Our Solutions!
Truck Loading Conveyor
Efficient and Safe Bulk Loading for Trucks and Trailers
The Truck Loading Conveyor is specifically designed to streamline the loading process of bulk materials into trucks, trailers, or containers. Its adjustable length and height allow easy alignment with different vehicle sizes, improving loading speed, reducing manual labor, and minimizing material spillage.
Key Features
Adjustable Length & Height
Telescopic design for versatile truck sizes and heights.
Heavy-Duty Construction
Built to handle large volumes of bulk materials like grains, fertilizers, sand, and aggregates.
Portable & Mobile
Equipped with wheels and towing options for easy relocation across sites.
Durable Belt Options
Rubber, PVC, or PU belts designed for abrasion resistance and longevity.
Variable Speed Control
Optimizes loading rate based on operational needs.
Safety Features
Emergency stops, side guards, and protective covers.
Easy Setup
Quick assembly and disassembly for flexible deployment.
Robust Frame
Powder-coated steel frame for corrosion resistance.
Technical Specifications
Parameter | Details |
---|---|
Belt Width | 600 mm to 1500 mm |
Conveyor Length | 6 m to 15 m (telescopic/adjustable) |
Belt Material | Rubber, PVC, PU |
Load Capacity | Up to 40,000 kg/hr |
Motor Power | 2 HP to 7.5 HP |
Speed Range | 0.3 m/s to 2 m/s |
Frame Material | Powder-coated mild steel |
Mobility | Wheels and towing hitch available |
Height Adjustment | Hydraulic or mechanical lift system |
Applications of Truck Loading Conveyor
Logistics & Warehousing
Efficient truck loading in distribution centers.
Agriculture
Loading grains, seeds, and fertilizers.
Mining & Quarrying
Loading ores, sand, gravel, and aggregates.
Construction
Loading cement, sand, and construction materials.
Food Industry
Bulk loading of processed grains, sugar, and pulses.
