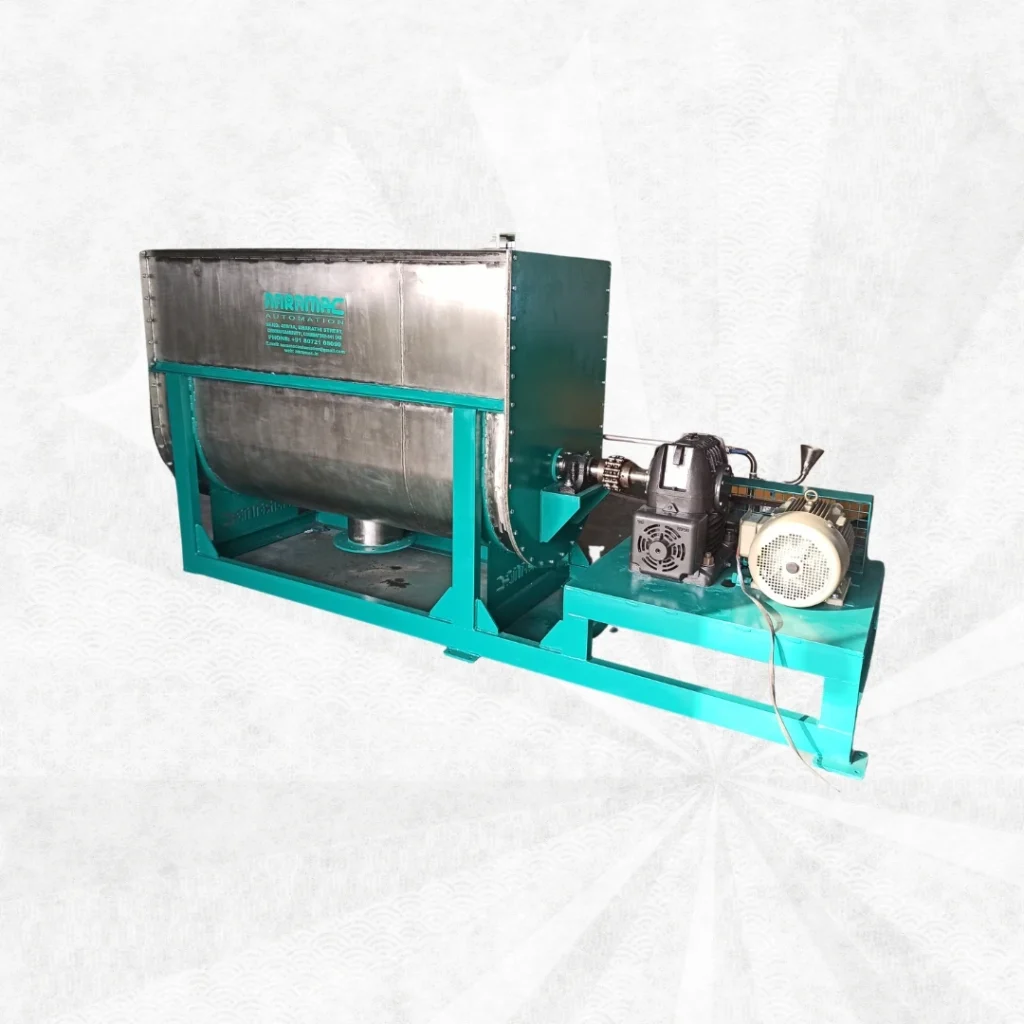

Blending / Mixing Machine
Uniform Mixing Solutions for Powders, Granules & Pastes
The Blending / Mixing Machine is engineered to deliver consistent and homogeneous mixtures across various industrial applications. Whether for dry powders, granules, or semi-wet ingredients, this machine ensures high-efficiency blending, crucial for quality control in food processing, pharmaceuticals, chemicals, and more.
Key Features
Uniform Mixing
Ensures thorough and even distribution of ingredients.
Versatile Models
Available in Ribbon Blender, Paddle Mixer, V-Blender, Double Cone Blender, and more.
Food & Pharma Grade Options
Constructed with SS304/SS316 for hygienic processing.
Variable Speed Drives (Optional)
Control intensity and speed of mixing.
Robust Design
Built for heavy-duty continuous operation.
Discharge Valve Options
Slide gate, butterfly valve, or customized outlets.
Dust-Free Operation
Sealed design minimizes material loss and contamination.
Technical Specifications
| Parameter | Details |
|---|---|
| Material Construction | SS304, SS316, MS (with lining options) |
| Capacity Range | 25 Litres to 5000 Litres (custom sizes available) |
| Mixing Type | Batch or Continuous |
| Mixing Time | 5 – 20 minutes (material dependent) |
| Drive Type | Gearbox with electric motor / VFD optional |
| Finish | Mirror polish (food grade) / Matte / Powder Coated / Painted |
Types Available
Ribbon Blender
For powders and granules
Paddle Mixer
Gentle mixing for fragile materials
V-Blender
Ideal for uniform dry powder blending
Double Cone Blender
Low-shear mixing for cohesive materials
Tumble Mixer
For consistent blending of dry solids
High Shear Mixer
For viscous, semi-liquid, or paste-like ingredients
Applications of Blending / Mixing Machine
Spice and Food Processing
Chemical Blending
Cosmetic Formulations
Pharma Dry Powder Mixing
Nutraceuticals & Herbal Products
Plastic and Resin Compound Mixing
Get Started Today - Explore Our Solutions!

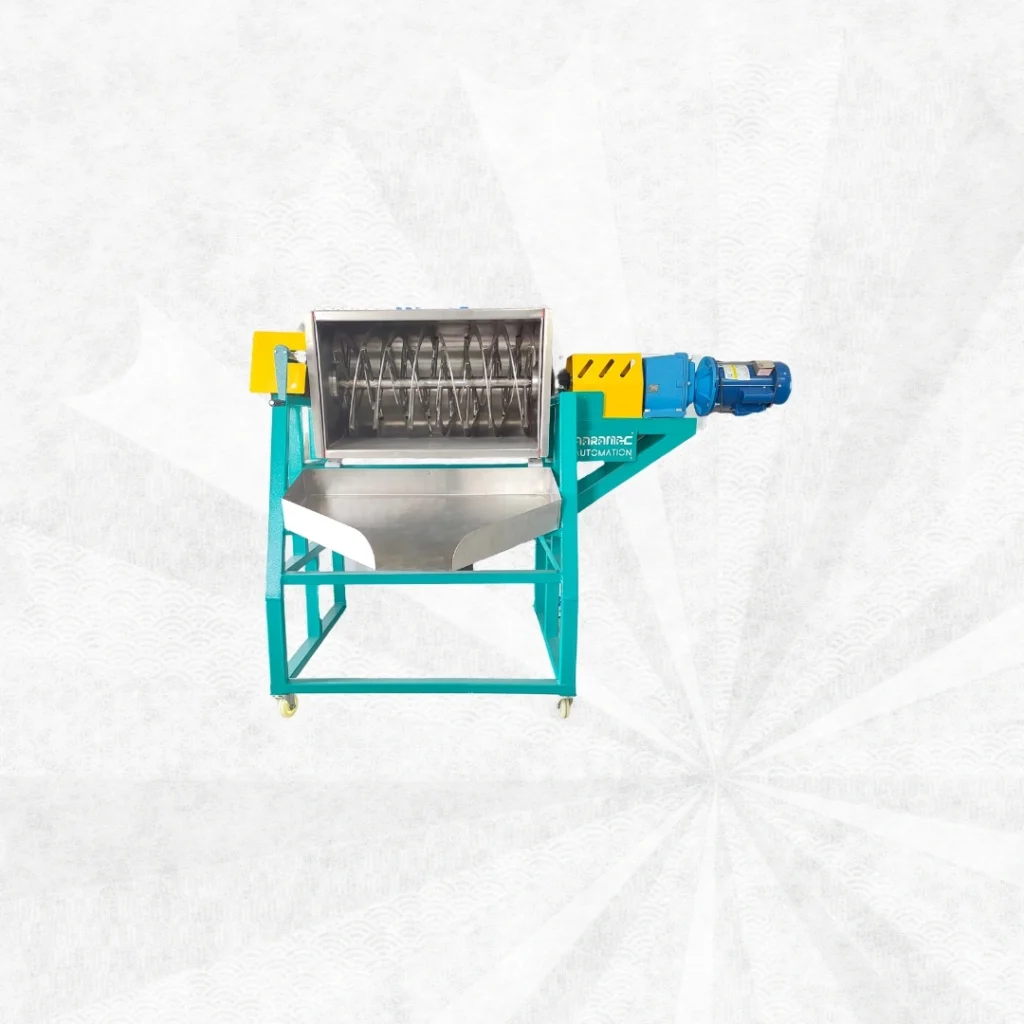

Ribbon Blender
Efficient and Homogeneous Mixing for Dry Powders & Granules
The Ribbon Blender is a versatile mixing machine designed to provide uniform and thorough blending of dry powders, granules, and semi-solid materials. Featuring a double helical ribbon agitator inside a horizontal trough, it ensures gentle yet effective mixing with minimal energy consumption. Widely used in food, chemical, pharmaceutical, and cosmetic industries, the ribbon blender delivers consistent quality in every batch.
Key Features
Double Helical Ribbon Agitator
Inner and outer ribbons move materials in opposite directions for homogeneous mixing.
Robust Construction
Made with mild steel or stainless steel for durability and hygiene.
Customizable Capacity
Available in a wide range of sizes from small lab-scale to large industrial models.
Discharge Valve
Easy-to-operate valve for quick and complete material discharge.
Easy to Clean
Designed for fast cleaning and maintenance, with optional sanitary finishes.
Low Power Consumption
Efficient mixing with minimal energy usage.
Optional Jacketed Trough
For heating or cooling during mixing, suitable for temperature-sensitive materials.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | From 25 liters to 5000 liters (or customized) |
| Motor Power | 0.5 HP to 30 HP (depending on size) |
| Material of Construction | Mild Steel / SS 304 / SS 316 (optional) |
| Mixing Time | Typically 5 to 30 minutes per batch |
| Operating Speed | 20 to 50 RPM |
| Discharge Type | Bottom discharge valve (butterfly or slide gate) |
| Dimensions | Customizable as per capacity |
Applications of Ribbon Blender
Food Industry
Mixing flour blends, spices, baking mixes, and dry ingredients.
Pharmaceuticals
Blending powders for tablets and capsules.
Chemicals
Mixing powders, granules, and additives.
Cosmetics
Homogenizing powders for makeup and skincare products.
Feed Mills
Uniform mixing of animal feed ingredients.
Get Started Today - Explore Our Solutions!
Paddle Mixer
Efficient and Gentle Mixing for Powders, Granules & Pastes
The Paddle Mixer is a versatile mixing machine designed to provide uniform blending of dry powders, granules, and semi-solid materials with gentle agitation. Featuring paddle-shaped agitators mounted on a horizontal shaft inside a trough, it ensures thorough mixing with minimal particle breakage, making it suitable for delicate and heat-sensitive materials.
Key Features
Paddle Agitators
Multiple paddles move materials both radially and axially for homogeneous mixing.
Robust Construction
Made with mild steel or stainless steel for durability and compliance with hygiene standards.
Customizable Capacity
Available in various sizes from laboratory scale to large industrial models.
Discharge Valve
Efficient bottom discharge for quick and complete emptying.
Low Shear Mixing
Suitable for fragile or heat-sensitive materials, minimizing degradation.
Easy to Clean
Designed for fast cleaning and maintenance, with sanitary options available.
Optional Jacketed Vessel
For temperature control during mixing.
Variable Speed Control
Enables precise adjustment of mixing intensity and duration.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | From 25 liters to 5000 liters (customizable) |
| Motor Power | 0.5 HP to 25 HP (depending on size) |
| Material of Construction | Mild Steel / SS 304 / SS 316 (optional) |
| Mixing Time | Typically 5 to 30 minutes per batch |
| Operating Speed | 20 to 80 RPM |
| Discharge Type | Bottom discharge valve (butterfly or slide gate) |
| Dimensions | Customizable as per capacity |
Applications of Paddle Mixer
Food Industry
Mixing spices, baking powders, dry blends, and pastes.
Pharmaceuticals
Blending powders for formulations requiring gentle handling.
Chemical Industry
Mixing fine powders and granular chemicals.
Cosmetics
Homogenizing powders and pastes for skincare products.
Feed Mills
Uniform mixing of animal feed ingredients.
Get Started Today - Explore Our Solutions!
Tumble Blender
Gentle and Uniform Mixing for Dry Powders and Granules
The Tumble Blender is designed to provide homogeneous mixing of dry powders, granules, and other free-flowing materials by gently tumbling the product inside a rotating drum or container. This low-shear blending technique preserves particle integrity and prevents segregation, making it ideal for heat-sensitive, fragile, or free-flowing materials in food, pharmaceutical, chemical, and cosmetic industries.
Key Features
Rotating Drum Design
Materials are mixed by continuous tumbling and cascading action.
Low Shear Mixing
Gentle action prevents particle degradation and maintains material quality.
Robust Construction
Made from mild steel or stainless steel to meet hygiene and durability requirements.
Variable Speed Drive
Adjustable rotation speed for optimizing mixing time and intensity.
Easy Loading and Discharge
Tilting or removable drums for quick loading and unloading.
Customizable Capacity
Available in small laboratory sizes to large industrial volumes.
Optional Jacketed Drum
For temperature-controlled mixing (heating or cooling).
Minimal Maintenance
Simple design with easy access for cleaning and servicing.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 50 liters to 5,000 liters (customizable) |
| Motor Power | 0.5 HP to 30 HP (depending on model) |
| Material of Construction | Mild Steel / SS 304 / SS 316 |
| Rotation Speed | Typically 5 to 20 RPM |
| Mixing Time | 5 to 30 minutes per batch |
| Discharge Type | Tilting drum, removable drum, or discharge chute |
| Dimensions | Customizable per capacity |
Applications of Tumble Blender
Food Industry
Blending dry mixes, spices, bakery ingredients, and powders.
Pharmaceuticals
Uniform mixing of tablets, granules, and powders.
Chemical Industry
Mixing powders, granules, and fine chemicals.
Cosmetics
Homogenizing powdered ingredients.
Feed Mills
Gentle mixing of animal feed components.
Get Started Today - Explore Our Solutions!
High Shear Mixer / High Speed Disperser
Powerful and Efficient Mixing for Emulsions, Suspensions & Pastes
The High Shear Mixer is designed for intensive mixing, emulsification, homogenization, and dispersion of liquids, powders, and semi-solids. Using a high-speed rotor and stationary stator, it generates intense shear forces to rapidly break down particles and droplets, creating smooth, uniform mixtures. This machine is widely used in food, pharmaceutical, cosmetic, chemical, and paint industries for producing stable emulsions, suspensions, and fine dispersions.
Key Features
Rotor-Stator Design
Generates high shear rates for efficient particle size reduction and uniform mixing.
Variable Speed Control
Allows adjustment of shear intensity to suit different materials and processes.
Robust Construction
Stainless steel wetted parts for hygiene and corrosion resistance.
Easy Cleaning
Designed for quick disassembly and cleaning, including CIP (Clean-In-Place) options.
Versatile Applications
Suitable for mixing powders into liquids, emulsifying immiscible phases, and dispersing solids.
Compact & Modular
Fits easily into existing production lines with options for batch or inline operation.
Temperature Control Options
Temperature Control Options: Jacketed vessels and cooling systems available for heat-sensitive materials.
Low Maintenance
Durable components ensure long service life and minimal downtime.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | From 10 liters to 2000 liters (customizable) |
| Motor Power | 1 HP to 30 HP |
| Speed Range | 1000 to 10,000 RPM |
| Material of Construction | SS 304 / SS 316 for wetted parts |
| Mixing Time | Typically 5 to 30 minutes per batch |
| Operation Mode | Batch or Inline |
| Discharge | Bottom or side discharge options |
Applications of High Shear Mixer
Food Industry
Emulsifying sauces, dressings, creams, and beverages.
Pharmaceuticals
Preparing suspensions, ointments, and emulsions.
Cosmetics
Mixing creams, lotions, gels, and pastes.
Chemical Industry
Producing paints, adhesives, coatings, and lubricants.
Fine Chemicals & Agrochemicals
Dispersion and homogenization of active ingredients.
Get Started Today - Explore Our Solutions!
V-Blender (V-Mixer)
Gentle and Homogeneous Mixing for Dry Powders and Granules
The V-Blender is a highly efficient machine designed for uniform mixing of dry powders and granules through a tumbling action inside a V-shaped chamber. The unique design ensures thorough blending by splitting and recombining the material flow, providing excellent mixing with minimal particle degradation or heat generation. This makes it ideal for pharmaceutical, food, chemical, and cosmetic industries.
Key Features
V-Shaped Chamber
Promotes repeated division and recombination of materials for consistent mixing.
Low Shear Mixing
Gentle tumbling action prevents damage to fragile particles.
Robust Construction
Manufactured with mild steel or stainless steel for hygiene and durability.
Variable Speed Drive
Adjustable rotation speed to optimize mixing time and quality.
Easy Loading & Discharge
Swing-open or removable covers and bottom discharge valves for convenient operation.
Customizable Capacity
Available in laboratory to large industrial scales.
Minimal Maintenance
Simple design ensures easy cleaning and servicing.
Optional Jacketed Design
For temperature control during mixing.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 10 liters to 5000 liters (customizable) |
| Motor Power | 0.5 HP to 25 HP (depending on size) |
| Material of Construction | Mild Steel / SS 304 / SS 316 (optional) |
| Rotation Speed | 10 to 30 RPM |
| Mixing Time | Typically 5 to 20 minutes per batch |
| Discharge Type | Bottom discharge valve or manual unloading |
| Dimensions | Customizable per capacity |
Applications of V-Blender (V-Mixer)
Pharmaceutical Industry
Blending powders for tablet and capsule formulations.
Food Industry
Mixing dry ingredients such as spices, flour blends, and additives.
Chemical Industry
Uniform mixing of fine powders and granules.
Cosmetics
Homogenizing powders for makeup and skincare products.
Feed Mills
Mixing animal feed components evenly.
Get Started Today - Explore Our Solutions!
Double Cone Blender
Efficient and Homogeneous Mixing for Powders and Granules
The Double Cone Blender is a specialized mixing machine designed for uniform blending of powders, granules, and particulate materials. Its unique design features a cone-shaped vessel that rotates, creating a three-dimensional tumbling and cascading motion. This gentle mixing action ensures excellent homogeneity while minimizing particle degradation and segregation, making it ideal for pharmaceutical, chemical, food, and cosmetic industries.
Key Features
Conical Rotating Vessel
Promotes thorough mixing through tumbling and cascading action.
Low Shear Mixing
Gentle motion preserves particle integrity and prevents heat buildup.
Robust Construction
Manufactured with mild steel or stainless steel for hygiene and durability.
Variable Speed Control
Adjustable rotation speed to optimize mixing time and consistency.
Easy Loading & Discharge
Tilting or bottom discharge valve for smooth material handling.
Customizable Capacity
Available in small laboratory sizes to large industrial volumes.
Optional Jacketed Vessel
For heating or cooling during mixing.
Low Maintenance
Simple, sturdy design for easy cleaning and servicing.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 50 liters to 5000 liters (customizable) |
| Motor Power | 1 HP to 25 HP (depending on size) |
| Material of Construction | Mild Steel / SS 304 / SS 316 |
| Rotation Speed | Typically 10 to 30 RPM |
| Mixing Time | 5 to 25 minutes per batch |
| Discharge Type | Tilting vessel or bottom discharge valve |
| Dimensions | Customizable per capacity |
Applications of Double Cone Blender
Pharmaceutical Industry
Mixing powders for tablets, capsules, and granules.
Food Industry
Blending dry ingredients, spices, and additives.
Chemical Industry
Uniform mixing of powders and granular materials.
Cosmetics
Homogenizing powders for makeup and skincare.
Feed Mills
Mixing animal feed ingredients evenly.
Get Started Today - Explore Our Solutions!
Agitator / Stirrer
Efficient Mixing and Stirring for Liquids and Suspensions
An Agitator is a mechanical device designed to stir, blend, or mix liquids and suspensions within tanks or vessels. It promotes uniform distribution of solids, liquids, and gases by creating controlled fluid flow patterns. Agitators are essential in industries such as chemical processing, pharmaceuticals, food and beverage, and wastewater treatment for enhancing mixing efficiency and ensuring product consistency.
Key Features
Variety of Impeller Types
Includes paddle, turbine, propeller, anchor, and helical impellers to suit different mixing requirements.
Robust Construction
Made from stainless steel, mild steel, or specialized alloys depending on application and chemical compatibility.
Variable Speed Control
Enables precise adjustment of agitation speed for optimized mixing.
Customizable Shaft Length and Diameter
To fit different vessel sizes and shapes.
Sealing Options
Mechanical seals, gland packing, or magnetic drives to prevent leakage.
Easy Installation and Maintenance
Designed for quick mounting and servicing.
Adaptable to Various Vessel Types
Suitable for tanks, reactors, fermenters, and mixers.
Technical Specifications
| Parameter | Details |
|---|---|
| Power Range | 0.25 HP to 100 HP+ |
| Impeller Types | Paddle, Turbine, Propeller, Anchor, Helical, etc. |
| Material of Construction | SS 304, SS 316, Mild Steel, Alloy Steel |
| Speed Range | 10 to 1500 RPM (depending on application) |
| Shaft Diameter | Customized per design |
| Mounting | Top, side, or bottom mounted |
| Sealing Options | Mechanical seal, gland packing, magnetic drive |
Applications of Agitator
Chemical Industry
Mixing chemicals, suspensions, and emulsions.
Pharmaceutical
Stirring formulations, suspensions, and reactors.
Food & Beverage
Blending ingredients, mixing liquids, and maintaining suspensions.
Wastewater Treatment
Aeration and mixing of sludge and liquids.
Cosmetics
Homogenizing powders for makeup and skincare.
Get Started Today - Explore Our Solutions!
Related Products
