Bucket Elevator
Vertical Lifting Solution for Efficient Handling of Bulk Materials
A Bucket Elevator is a vertically oriented material handling system designed to transport bulk solids—such as powders, grains, pellets, or granules—vertically with minimal spillage and energy use. It operates using a series of buckets attached to a belt or chain, moving continuously within a casing. Widely used in food processing, grain storage, chemical, and construction industries, bucket elevators offer reliable and space-efficient material elevation.
Key Features
Vertical Conveying
Transports materials up to significant heights, saving horizontal space.
Enclosed Design
Reduces dust emissions and protects material from contamination.
High Lifting Efficiency
Low power consumption and high capacity for bulk handling.
Heavy-Duty Buckets
Available in plastic, stainless steel, or mild steel for different applications.
Custom Discharge Heights
Designed to suit specific layout needs.
Belt or Chain Driven
Based on application—belt for light/clean materials, chain for heavy/abrasive ones.
Optional Features
Anti-backflow valves, inspection windows, speed sensors, and explosion vents.
Low Maintenance
Designed for durability and easy servicing.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 1 TPH to 100 TPH (customizable) |
| Lift Height | Up to 40 meters or more |
| Bucket Pitch | Custom as per capacity and product |
| Bucket Material | HDPE / SS / MS / Nylon |
| Casing Material | Mild Steel / SS 304 / SS 316 |
| Drive Type | Belt / Chain |
| Motor Power | 1 HP to 30 HP (depending on height and load) |
| Discharge Type | Centrifugal or continuous |
Applications of Bucket Elevator
Food Industry
Lifting grains, flour, spices, sugar, salt, etc.
Agro Processing
Elevating seeds, pulses, animal feed.
Chemical Industry
Handling granules, crystals, and powders.
Cement & Mining
Transporting lime, clinker, crushed minerals.
Plastic Industry
Conveying plastic granules or pellets.
Get Started Today - Explore Our Solutions!
Belt Type Elevator
High-Speed Vertical Lifting for Free-Flowing Bulk Materials
The Belt-Type Bucket Elevator is a cost-effective and efficient solution for vertically conveying light to medium-weight, free-flowing bulk materials. Utilizing a Cotton, synthetic, rubber or PVC belt fitted with buckets, this type of elevator operates at higher speeds and lower noise levels than chain-type elevators. Ideal for grains, powders, pellets, and other dry bulk materials, it is widely used in the food, agriculture, and chemical industries.
Key Features
High-Speed Operation
Optimized for smooth, fast conveying of free-flowing materials.
Lightweight Belt System
Reduces energy consumption and maintenance costs.
Gentle Handling
Ideal for fragile materials that require minimal degradation.
Low Noise and Vibration
Quiet operation in indoor or clean environments.
Flexible Design Options
Custom discharge heights, belt widths, and bucket sizes.
Corrosion-Resistant Options
Stainless steel casing and plastic buckets for hygienic use.
Safety Enhancements
Belt alignment sensors, backstop, and speed monitoring available.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 1 TPH to 150 TPH (customizable) |
| Lift Height | Up to 35 meters |
| Bucket Material | Plastic (HDPE/Polypropylene), MS, or SS |
| Belt Type | Cotton, Synthetic, Rubber, PVC, or food-grade PU |
| Casing Material | MS powder-coated / SS 304 / SS 316 |
| Motor Power | 1 HP to 25 HP (based on capacity & height) |
| Discharge Type | Centrifugal |
| Bucket Spacing | Optimized based on throughput and flow rate |
Applications of Belt Type Elevator
Food Industry
Flour, rice, sugar, grains, coffee, spices.
Agriculture
Corn, wheat, pulses, oilseeds
Chemical Industry
Powders, salts, dry chemicals.
Plastic Industry
Granules, regrind materials.
Pharmaceuticals
Bulk transfer of non-hygroscopic powders.
Get Started Today - Explore Our Solutions!

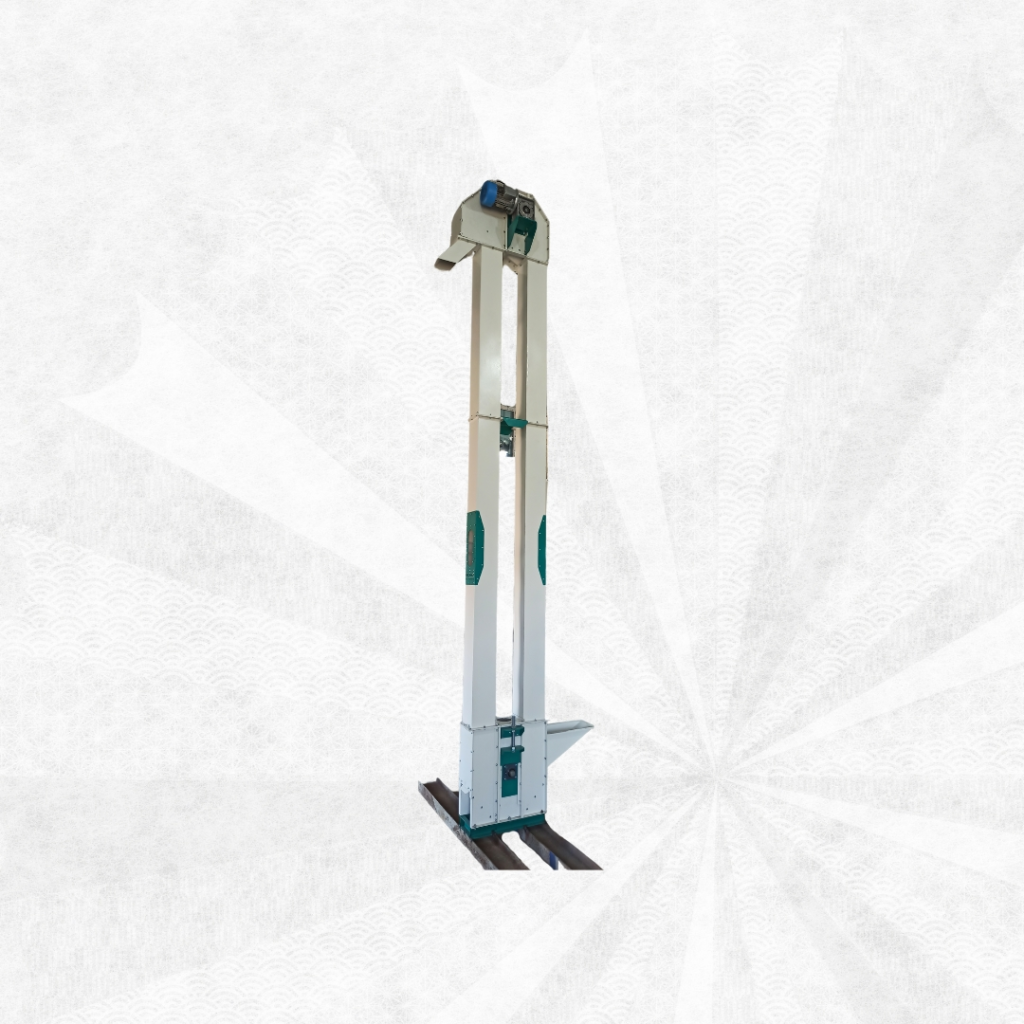

Chain-Type Bucket Elevator
Heavy-Duty Vertical Conveying for Tough and Abrasive Materials
The Chain-Type Bucket Elevator is engineered for vertical transportation of large, heavy, and abrasive materials under demanding industrial conditions. Instead of a belt, this system uses a robust forged or roller chain to support the buckets, making it ideal for continuous, high-load operations. Its rugged construction ensures superior durability and performance in cement, mining, steel, fertilizer, and grain handling industries.
Key Features
Forged or Roller Chain Mechanism
Offers superior strength and resistance to wear under tough conditions.
Heavy-Duty Buckets
Made from MS, SS, or polymer based on material abrasiveness and temperature.
Enclosed Design
Minimizes dust leakage and protects the material and environment.
Shock-Resistant
Handles coarse or high-impact materials without spillage.
High-Lift Capability
Efficient material transport at heights up to 50 meters.
Long Service Life
Designed for 24/7 operation with minimal downtime.
Robust Casing
Built from thick steel to withstand external mechanical stresses.
Multiple Inlet/Outlet Options
Custom configurations for process integration.
Technical Specifications
| Parameter | Details |
|---|---|
| Conveying Capacity | 5 TPH to 250 TPH (custom-built) |
| Lift Height | Up to 50 meters |
| Chain Type | Forged Link Chain / Roller Chain |
| Bucket Material | Mild Steel / Stainless Steel / HDPE / Polypropylene |
| Casing Material | Mild Steel / SS 304 / SS 316 |
| Motor Power | 3 HP to 50 HP |
| Discharge Type | Centrifugal or Gravity Discharge |
| Bucket Spacing | Custom as per speed and capacity |
Applications of Chain-Type Bucket Elevator
Fertilizer Plants
Urea, DAP, potash, and compound fertilizers.
Cement Plants
Clinker, gypsum, limestone, and fly ash.
Mining & Minerals
Crushed ores, coal, sand, and stone chips.
Steel & Foundry
Slag, coke, sinter, and scrap materials.
Grain Terminals
Heavy grains or mixed grain with impurities.
Get Started Today - Explore Our Solutions!

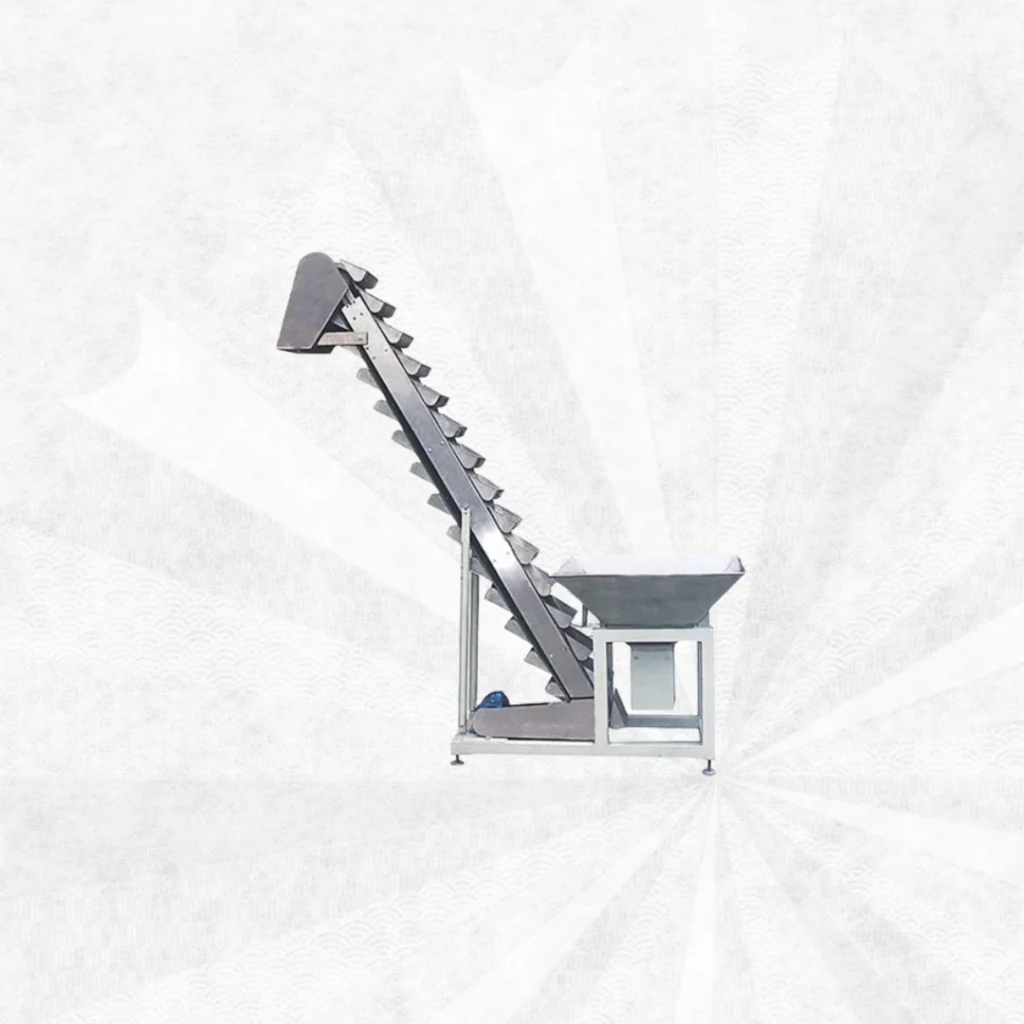

Inclined Bucket Elevator
Smooth, Gentle, and Space-Efficient Material Lifting Solution
The Inclined Bucket Elevator is specially designed for gentle and controlled vertical and inclined transportation of fragile or bulk materials. Operating at an inclined angle (typically 30° to 75°), it reduces product damage and ensures smooth transfer, making it ideal for applications where product integrity is critical. Commonly used in the food, pharmaceutical, agricultural, and chemical industries, this elevator is suitable for powdery, granular, or small lumpy materials.
Key Features
Inclined Conveying Path
Saves floor space while enabling vertical lift.
Gentle Material Handling
Prevents product breakage—perfect for delicate items.
Enclosed Design
Minimizes spillage and dust, ensuring a clean operation.
Multiple Feed & Discharge Points
Flexible layout integration.
Low Noise Operation
Smooth, quiet mechanical movement ideal for cleanroom use
Optional Vibratory Feeders
For uniform material loading into buckets.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 0.5 TPH to 30 TPH |
| Inclination Angle | 30° to 75° (customizable) |
| Bucket Material | Food-grade plastic / SS / MS |
| Bucket Size | Custom as per product and output |
| Casing/Frame Material | SS 304 / SS 316 / MS powder-coated |
| Drive System | Chain-driven or belt-driven |
| Motor Power | 0.5 HP to 5 HP |
| Feeding System | Manual, vibratory, or hopper-fed |
| Discharge | Centrifugal or gravity, with flap/slide gates if needed |
Applications of Inclined Bucket Elevator
Food Industry
Chips, snacks, grains, dry fruits, pasta, spices
Pharmaceuticals
Capsules, tablets, and powders.
Agriculture
Seeds, feed pellets, or granular fertilizers.
Chemicals
Powdered chemicals, detergents, and plastic granules.
Packaging Lines
For feeding form-fill-seal (FFS) or multihead weigher machines.
Get Started Today - Explore Our Solutions!
“Z” Type Elevator
Space-Saving, Gentle Handling for Precise Product Transfer
The Z-Type Bucket Elevator is a specialized conveying system designed for gentle, multi-directional transport of granular and fragile materials in a Z-shaped configuration (horizontal–vertical–horizontal). This elevator is ideal for applications that require product integrity, minimal spillage, and controlled feeding into packaging or processing machines. It is commonly used in the food, pharma, confectionery, agriculture, and cosmetic industries.
Key Features
Gentle Product Handling
Perfect for delicate items like snacks, dry fruits, seeds, or pharmaceutical products.
Z-Shaped Structure
Combines horizontal and vertical conveying to fit tight spaces and optimize workflow.
Continuous or Intermittent Discharge
Supports precise batch feeding.
Modular Design
Customizable height, length, and bucket configurations.
Food-Grade Construction
SS 304/316 with food-safe buckets for hygienic applications.
Quiet and Clean Operation
Enclosed system reduces dust, noise, and contamination.
Easy Maintenance
Tool-free bucket removal and inspection windows available.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 0.5 TPH to 20 TPH |
| Bucket Material | Food-grade PP / HDPE / SS |
| Frame Material | SS 304 / SS 316 / MS powder-coated |
| Bucket Width | 100 mm to 600 mm (custom) |
| Discharge Type | Automatic or sensor-triggered |
| Motor Power | 0.5 HP to 5 HP |
| Drive Type | Chain-driven (preferred for durability) |
| Feeding System | Hopper-fed or vibratory feeder compatible |
| Cleaning Access | Openable covers and clean-out doors |
Applications of “Z” Type Elevator
Snack Foods
Chips, kurkure, puffed rice, nuts, popcorn.
Dry Fruits & Confectionery
Raisins, dates, candies, chocolates.
Agriculture
Seeds, grains, tea leaves.
Pharmaceuticals
Tablets, capsules, herbal blends.
Cosmetics & Chemicals
Powders, granules, or beads.
Get Started Today - Explore Our Solutions!

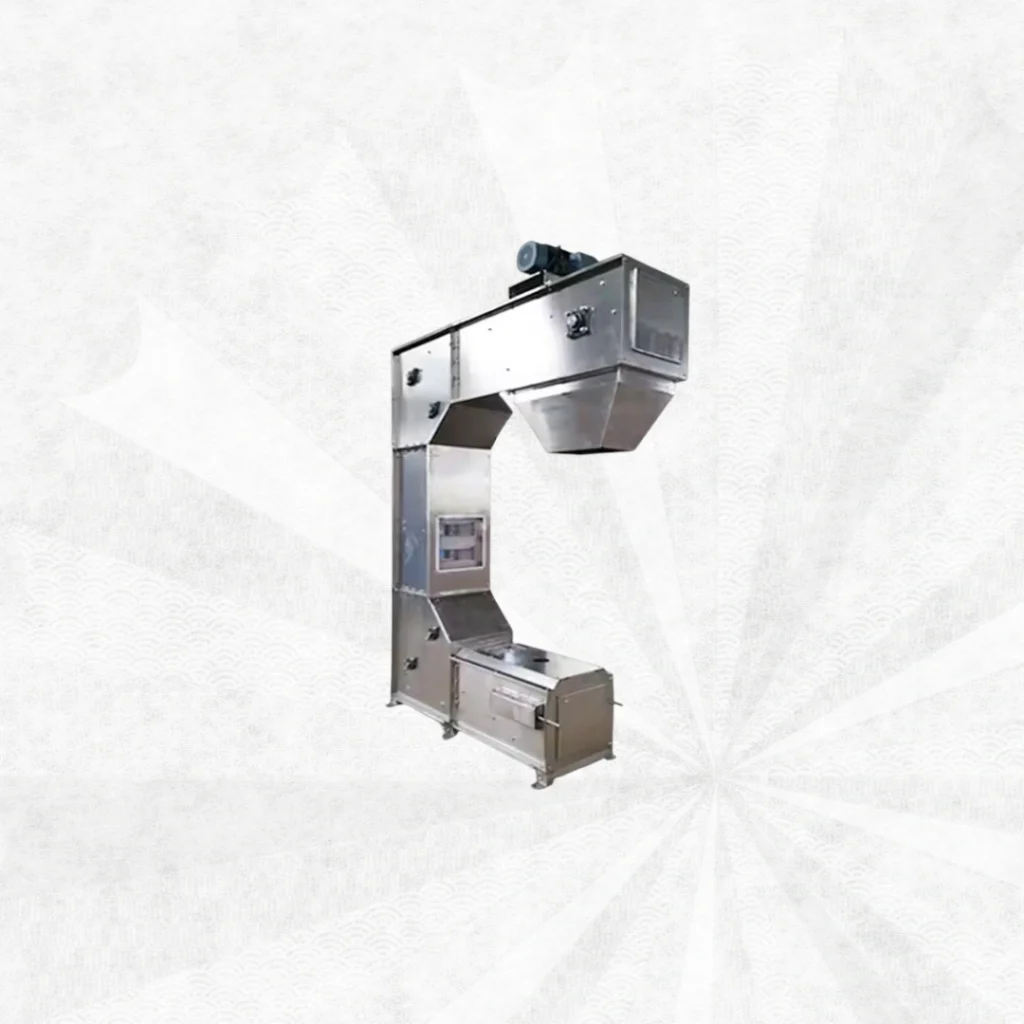

“C” Type Elevator
Compact and Efficient Vertical Lifting Solution for Bulk Materials
The C-Type Bucket Elevator is designed for vertical and slightly inclined material handling in a compact footprint, featuring a curved (C-shaped) conveying path. This design allows smooth, controlled transfer of powders, granules, and small lumps while optimizing space usage in production lines. It is widely used in the food, chemical, pharmaceutical, and agricultural industries for gentle and efficient bulk material transport.
Key Features
Curved Conveying Path
Allows vertical lift combined with gentle curves, saving plant floor space.
Versatile Material Handling
Suitable for powders, granules, and free-flowing bulk solids.
Hygienic Construction Options
Stainless steel and food-grade buckets available for sanitary applications.
Enclosed Design
Minimizes dust, contamination, and spillage.
Adjustable Speed & Capacity
Customizable bucket size, speed, and motor power.
Low Noise Operation
Quiet and smooth conveying suitable for clean production environments.
Easy Maintenance
Accessible inspection ports and removable buckets.
Technical Specifications
| Parameter | Details |
|---|---|
| Capacity | 0.5 TPH to 40 TPH |
| Lift Height | Up to 25 meters |
| Bucket Material | Food-grade plastic / SS 304 / Mild Steel |
| Casing Material | SS 304 / SS 316 / Powder-coated MS |
| Drive System | Chain or belt-driven options |
| Motor Power | 1 HP to 10 HP |
| Bucket Spacing | Adjustable to material and throughput requirements |
Applications of “C” Type Elevator
Food Industry
Flour, sugar, spices, rice, pulses.
Pharmaceutical
Powders and granules requiring hygienic handling.
Agriculture
Seeds, fertilizers, animal feed.
Chemical Industry
Fine powders, granules, and small lumps.
Plastic Industry
Granules and resin pellets.
Get Started Today - Explore Our Solutions!
