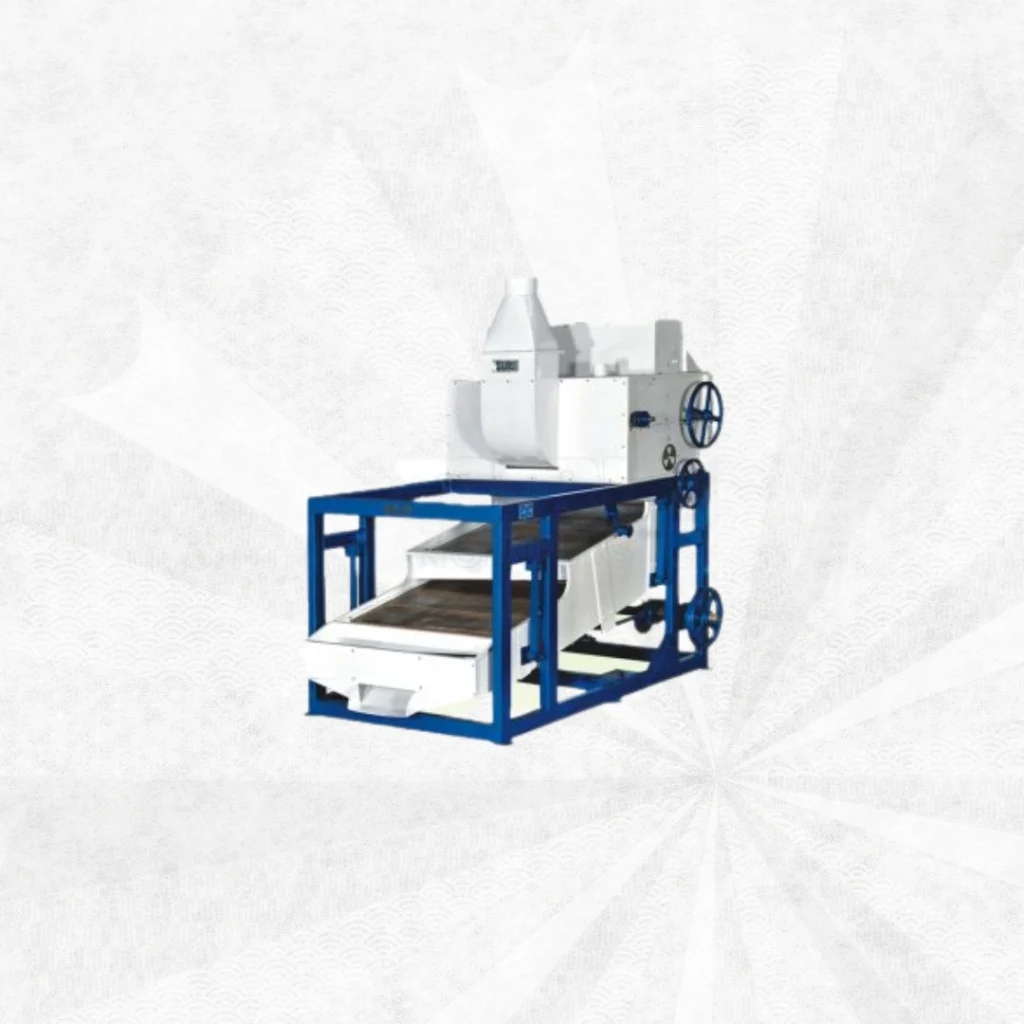

Eccentric Separator

Efficient Grading & Separation of Grains and Particles

The Eccentric Separator is a precision machine designed to separate and grade grains, pulses, and other particulate materials based on size and density using an eccentric vibration mechanism. It efficiently classifies materials into different grades with minimal breakage and high accuracy, making it ideal for seed processing, milling, and food production lines.

Key Features

Eccentric Vibration Mechanism

Provides smooth, consistent vibration for effective particle separation.

Multi-Deck Screens

Separate materials into multiple grades simultaneously.

Adjustable Inclination & Vibration Intensity

Customized separation based on material type.

Robust Frame Construction

Heavy-duty mild steel or stainless steel for durability.

Easy Screen Replacement

Quick-change screen decks for different grading requirements.

Low Noise & Low Energy Consumption

Efficient motor and vibration design.

Dust Collection Ports

Optional aspiration connections for cleaner operation.

Compact Footprint

Suitable for integration into existing processing lines.

Technical Specifications

Parameter	Details
Power Supply	Three Phase
Motor Power	1 HP to 5 HP (depending on model)
Capacity	500 kg/hr to 5 tons/hr (model dependent)
Number of Decks	1 to 3 (customizable)
Screen Mesh Size	Various (based on application)
Material of Construction	Mild Steel / SS 304 (optional)
Vibration Frequency	Adjustable
Machine Weight	Approx. 200 – 600 kg
