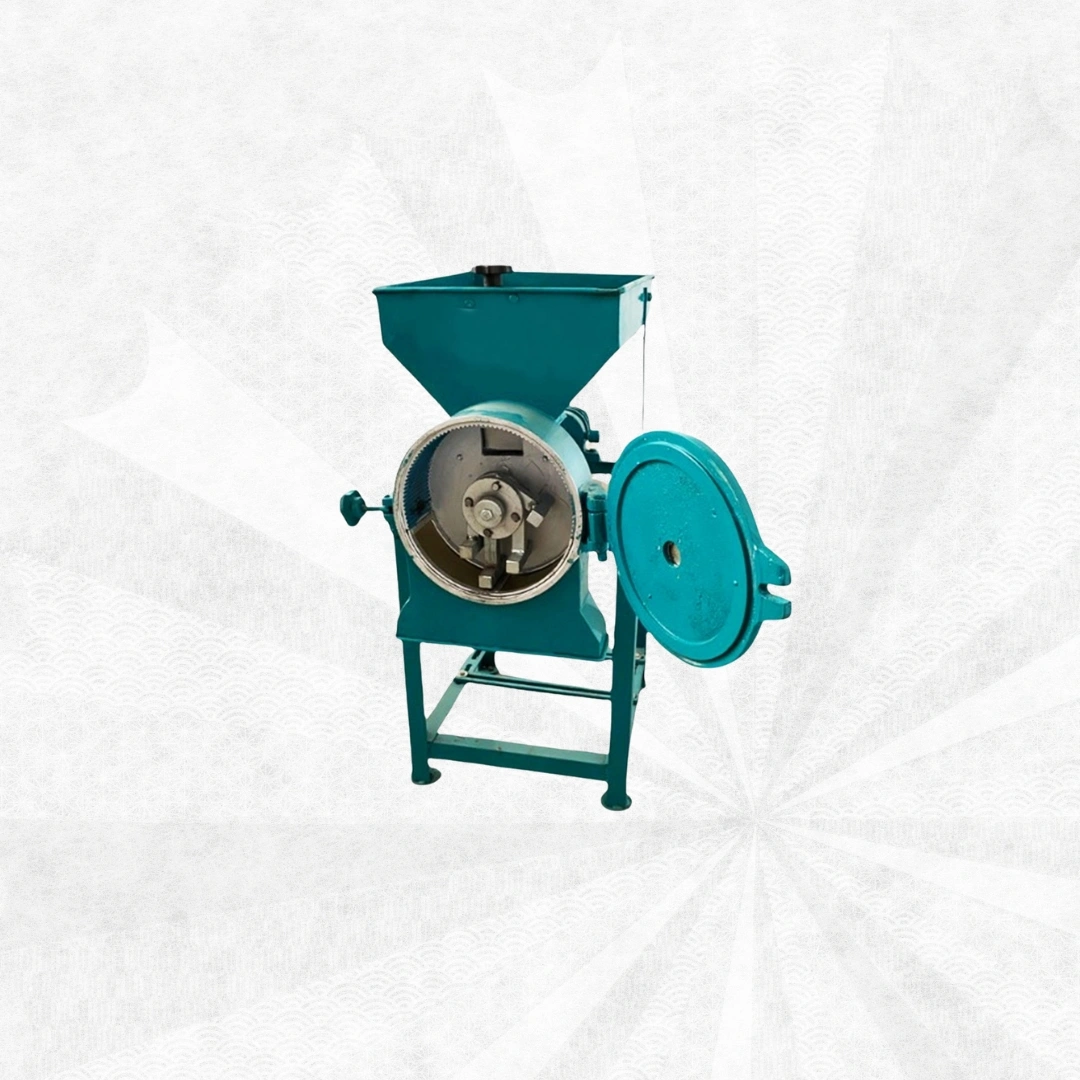

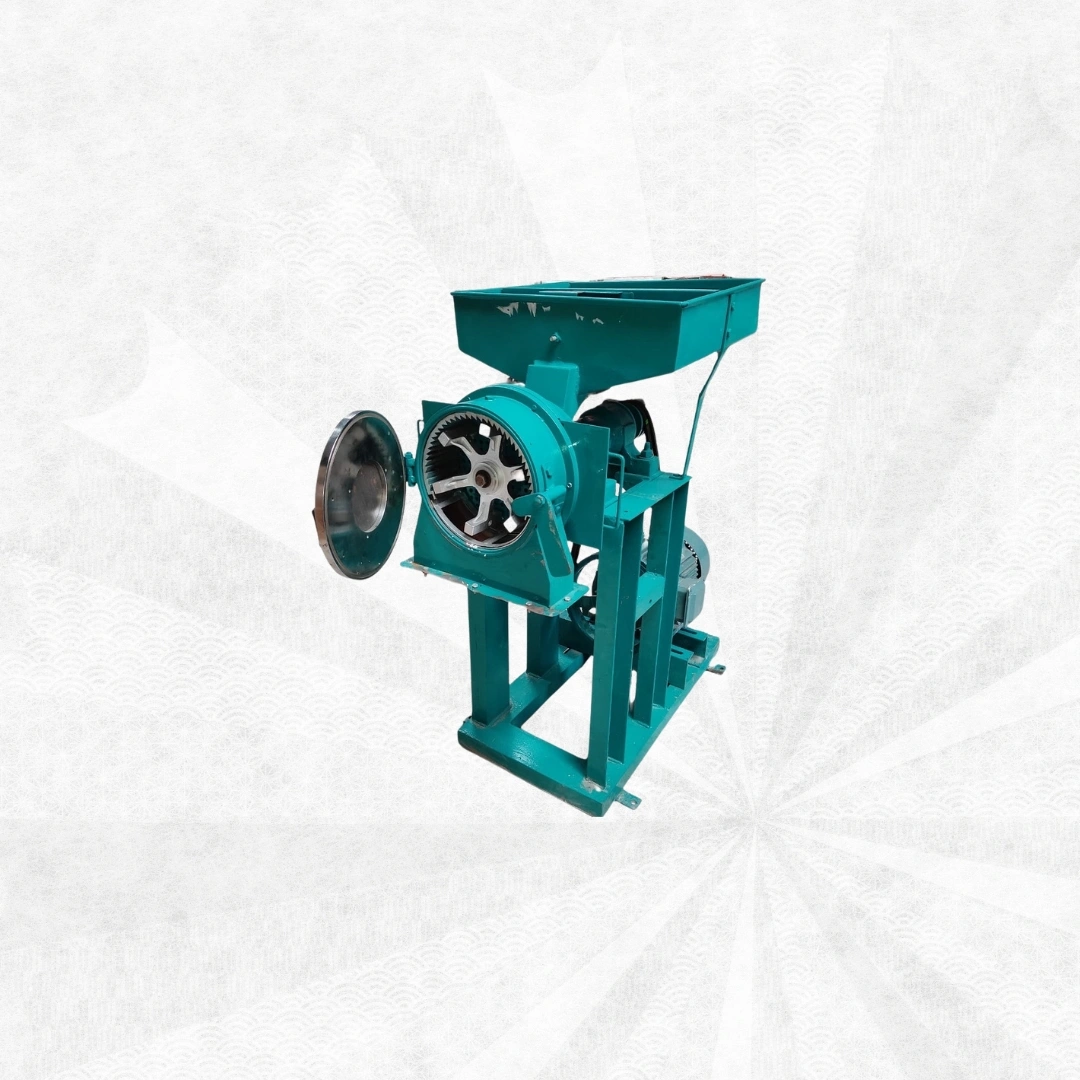

Pulveriser

Precision Grinding for Fine Powder Production

The Pulveriser is a high-speed grinding machine designed for fine and superfine powder production from a variety of dry raw materials. It utilizes rotating hammers or blades to crush materials against screens for consistent particle size. Commonly used in spice processing, pharmaceutical, chemical, and food industries, the pulveriser ensures efficient, hygienic, and uniform grinding.

Key Features

High-Speed Rotor with Hammers/Blades

Effective material impact for rapid pulverization.

Interchangeable Screens

Wide range of mesh sizes (down to 100 mesh or finer) to control powder fineness.

Dust Extraction Options

Equipped with blower and cyclone or dust collector for clean operation.

Hygienic Design

Contact parts available in Stainless Steel 304 to meet food and pharma standards.

Easy Maintenance

Quick access for screen and hammer replacement.

Robust Build

Suitable for heavy-duty industrial use with long-lasting components.

Cooling Options

Air or water cooling available for temperature-sensitive materials.

Technical Specifications

Parameter	Details
Power Supply	Three Phase
Motor Power	3 HP to 50 HP (model dependent)
Capacity	20 kg/hr – 1000 kg/hr
Rotor Speed	2800 – 4500 RPM
Screen Mesh Size	0.1 mm to 5 mm (customizable)
Material of Construction	Mild Steel / SS 304 (optional)
Feeding Type	Manual / Hopper-fed
Dust Collection	Blower + Cyclone / Bag Filter (optional)
Dimensions & Weight	Varies by model
