Roller Conveyor
Versatile and Efficient Material Handling System
The Roller Conveyor is a simple yet highly effective system for transporting goods, packages, and components in manufacturing, warehousing, and distribution centers. It consists of a series of rollers mounted on a frame, allowing smooth and low-friction movement of items. Available in gravity and powered versions, roller conveyors adapt to many industrial and commercial applications.
Features
Smooth Material Flow
Rollers reduce friction and enable easy movement.
Gravity or Powered Options
Choose manual (gravity) or motor-driven rollers.
Modular Design
Easily configurable for curves, inclines, or declines.
Heavy-Duty Rollers
Suitable for loads ranging from light packages to heavy pallets.
Durable Construction
Frames made of steel or aluminum for strength and longevity.
Low Maintenance
Simple mechanical design with minimal upkeep.
Customizable Lengths and Widths
Designed to fit your specific handling needs.
Safety Accessories Available
Guards, stops, and side rails.
Technical Specifications
| Parameter | Details |
|---|---|
| Roller Diameter | 38 mm to 127 mm (varies by load) |
| Roller Material | Steel, stainless steel, or Rubber-coated |
| Roller Spacing | Typically 50 mm to 150 mm |
| Load Capacity | Up to 2000 kg per linear meter (depending on roller specs) |
| Frame Material | Powder-coated steel or aluminum alloy |
| Conveyor Width | 300 mm to 2000 mm |
| Conveyor Length | Customizable |
| Drive Type | Gravity, belt-driven, or motor-driven rollers |
| Speed (powered) | Up to 30 m/min |
Applications of Roller Conveyor
Warehousing and Distribution
Sorting, packing, and palletizing lines.
Manufacturing
Assembly lines and parts transport.
Packaging
Moving cartons and packages efficiently.
Airport & Postal Handling
Sorting luggage and mail.
Automotive Industry
Parts handling and assembly.
Get Started Today - Explore Our Solutions!
Powered Roller Conveyor
Automated and Efficient Material Transport Solution
The Powered Roller Conveyor uses motor-driven rollers to move products automatically along the conveyor path, providing consistent speed and precise control. Ideal for high-volume production lines, packaging, and distribution centers, this conveyor enhances productivity by reducing manual handling and ensuring smooth, continuous product flow.
Features
Motor-Driven Rollers
Provides consistent and controlled movement of goods.
Variable Speed Control
Adjust conveyor speed to match operational requirements.
Modular Design
Easily expandable and configurable for curves, merges, and inclines
Heavy-Duty Construction
Designed for handling loads from small packages to heavy pallets.
Energy Efficient Motors
Designed to reduce power consumption.
Integrated Safety Features
Emergency stops, guards, and sensors available.
Low Noise Operation
Smooth and quiet running for comfortable work environment.
Easy Maintenance
Accessible components and simple motor replacement.
Technical Specifications
| Parameter | Details |
|---|---|
| Roller Diameter | 50 mm to 127 mm |
| Roller Material | Steel or stainless steel |
| Roller Spacing | Typically 50 mm to 150 mm |
| Load Capacity | Up to 2000 kg per linear meter |
| Conveyor Width | 300 mm to 2000 mm |
| Conveyor Length | Customizable |
| Motor Power | 0.1 HP to 5 HP (depending on load) |
| Speed Range | 0.05 m/s to 2 m/s |
| Frame Material | Powder-coated steel or aluminum alloy |
Applications of Powered Roller Conveyor
Packaging Lines
Automated movement of cartons and packages
Warehousing and Distribution
Sorting and palletizing operations.
Manufacturing
Assembly lines and parts transfer.
E-commerce Fulfillment
Fast and efficient order handling.
Automotive Industry
Moving parts and assemblies smoothly.
Get Started Today - Explore Our Solutions!

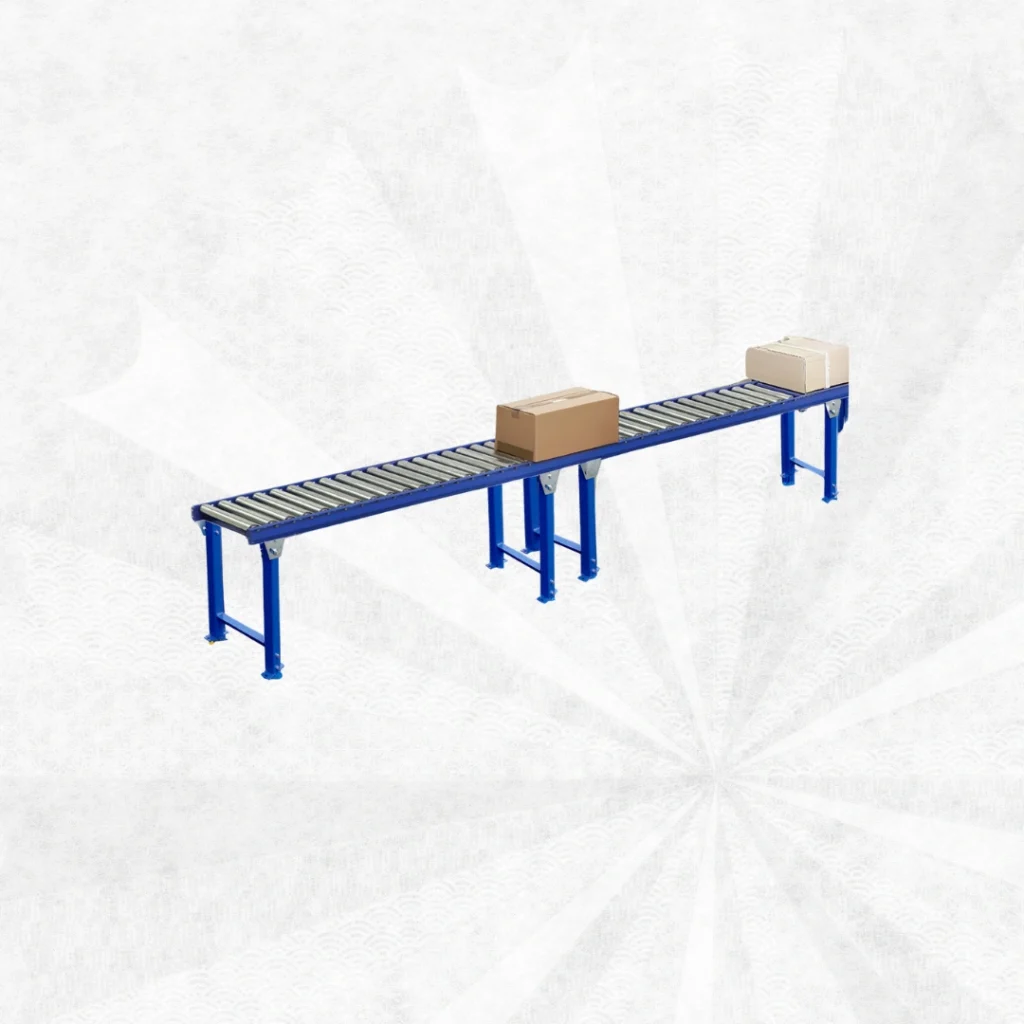

Gravity Roller Conveyor
Simple, Efficient, and Cost-Effective Material Handling
The Gravity Roller Conveyor relies on gravity to move goods along a slight incline, requiring no power source. This makes it an economical and low-maintenance solution for moving boxes, pallets, and materials within warehouses, assembly lines, and shipping areas. It’s ideal for short-distance transportation where manual control and product accumulation are needed.
Key Features
No Power Required
Moves loads using gravity, saving energy and reducing costs.
Durable Rollers
Steel or plastic rollers ensure smooth and reliable movement.
Adjustable Incline
Easily set the slope to control speed and flow.
Modular Construction
Simple to install, reconfigure, and expand.
Low Maintenance
Minimal wear and no motor-related upkeep.
Versatile Use
Suitable for a wide range of load sizes and weights.
Safety Options
End stops, side rails, and brake rollers available.
Technical Specifications
| Parameter | Details |
|---|---|
| Roller Diameter | 38 mm to 127 mm |
| Roller Material | Steel, stainless steel, or Rubber coated |
| Roller Spacing | Typically 50 mm to 150 mm |
| Load Capacity | Up to 1500 kg per linear meter |
| Conveyor Width | 300 mm to 2000 mm |
| Conveyor Length | Customizable |
| Incline Angle | 1° to 5° (adjustable) |
| Frame Material | Powder-coated steel or aluminum alloy |
Applications of Gravity Roller Conveyor
Warehousing & Distribution
Loading/unloading zones and packing stations.
Shipping
Package accumulation and sorting.
Assembly Lines
Moving parts and components between workstations.
Retail Distribution
Efficient movement of cartons and packages.
Manufacturing
Simple product transfer in process flow.
Get Started Today - Explore Our Solutions!
