Spout Pipes
Efficient and Controlled Material Discharge for Industrial Systems
Spout Pipes are precision-engineered ducts designed for the safe and directed flow of powders, granules, and bulk materials between equipment in processing and conveying systems. They play a critical role in maintaining a clean, efficient, and controlled discharge path within plants.
Key Features
Seamless Flow
Designed to minimize material sticking, bridging, and clogging.
Material Options
Available in stainless steel, mild steel, or coated steel depending on application.
Customizable Lengths & Diameters
Tailored to specific layout requirements.
Flanged or Plain Ends
For easy integration into various systems.
Smooth Internal Surface
Reduces friction and wear.
Compatible Accessories
Works with Clamp Tension Rings, Diverter Valves, Bends, and Elbows.
Optional Linings
Powder Coating, Ceramic, rubber, or PTFE linings for abrasive or corrosive materials.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | SS304, SS316, MS, Galvanized, Coated Steel |
| Diameter Range | 50 mm to 500 mm (custom sizes available) |
| Length | Standard or custom as per design |
| End Types | Flanged, Plain, Beaded, Grooved |
| Surface Finish | Mirror polish (food-grade), matte, Powder Coated, painted |
| Lining Options | Ceramic, Rubber, PTFE (optional) |
Applications of Spout Pipes
Pneumatic Conveying Systems
Grain and Food Processing
Chemical and Pharmaceutical Plants
Feed Mills and Flour Mills
Dust Collection Systems
Packaging and Transfer Lines
Get Started Today - Explore Our Solutions!
“Y” Diverter Valve
Efficient and Reliable Flow Direction Control for Bulk Materials
The “Y” Diverter Valve is a versatile valve designed to divert bulk materials, powders, and granules smoothly between two different pipeline paths. Commonly used in pneumatic conveying and material handling systems, it provides reliable, leak-proof switching to enhance process flexibility and operational efficiency.
Key Features
Smooth Material Flow
Minimizes material degradation and blockages during diversion.
Leak-Proof Design
Ensures airtight sealing to prevent air and material leakage.
Robust Construction
Fabricated from mild steel, stainless steel, or abrasion-resistant materials.
Versatile Operation
Available in manual, pneumatic, or electric actuation options.
Compact and Space-Saving
Ideal for integration in tight piping layouts.
Easy Maintenance
Simple design for quick inspection and servicing.
Custom Sizes and Angles
Adaptable to various pipeline diameters and divergence angles.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Mild Steel, Stainless Steel, Alloy Steel |
| Diameter Range | 50 mm to 800 mm (custom sizes available) |
| Operating Pressure | Up to 3 bar differential pressure |
| Actuation Type | Manual lever, pneumatic cylinder, electric actuator |
| Temperature Range | Up to 250°C (depending on material) |
| Seal Type | Air-tight rubber or PTFE seals |
Applications of “Y” Diverter Valve
Pneumatic Conveying Systems
Diverting powders, pellets, and granules.
Bulk Material Handling
Switching material flow between different processes or storage units.
Dust Collection Systems
Routing dust-laden air to different filtration units.
Food Processing Industry
Hygienic material diversion for flours, spices, and sugar.
Chemical and Pharmaceutical
Handling of fine powders and sensitive materials.
Get Started Today - Explore Our Solutions!
Bend Segments
Precision Engineered Components for Efficient Pipeline Direction Changes
Bend Segments are specialized pipe fittings designed to change the direction of material flow in pneumatic conveying, bulk handling, and Flour transport systems. Engineered for smooth transitions, they help maintain flow efficiency while minimizing wear and pressure loss.
Key Features
Smooth Flow Transition
Optimized internal radius to reduce turbulence and material degradation.
Durable Construction
Manufactured from stainless steel, mild steel, or abrasion-resistant materials.
Customizable Angles
Standard bends at 30°, 45°, 60°, 90°, or custom angles as per system design.
Wide Range of Sizes
Compatible with various pipeline diameters.
Wear-Resistant Linings
Optional ceramic or rubber linings for enhanced abrasion resistance.
Easy Integration
Designed to fit seamlessly with standard pipe and flange systems.
Maintenance Friendly
Accessible design for inspection and cleaning.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Stainless Steel, Mild Steel, Alloy Steel |
| Angle Options | 30°, 45°, 60°, 90°, or custom |
| Diameter Range | 50 mm to 1000 mm (custom sizes available) |
| Wall Thickness | According to pressure and abrasion needs |
| Lining Options | Powder Coating, Ceramic, Rubber, PU (optional) |
| Temperature Range | Up to 400°C (material dependent) |
Applications of Bend Segments
Pneumatic Conveying Systems
Bulk Material Handling
Dust Collection Systems
Chemical and Food Processing Industries
Get Started Today - Explore Our Solutions!
Universal Bend
Flexible and Durable Solution for Complex Pipeline Direction Changes
The Universal Bend is a versatile pipe fitting designed to accommodate variable angle changes and complex routing in pneumatic conveying and bulk material handling systems. Unlike fixed-angle bends, it offers flexibility in installation, making it ideal for adapting to space constraints and changing flow directions.
Key Features
Adjustable Angles
Can be set to multiple angles, providing versatility in pipeline design.
Robust Construction
Made from stainless steel, mild steel, or abrasion-resistant materials for long service life.
Smooth Internal Surface
Minimizes turbulence and material degradation during flow.
Wear-Resistant Linings
Optional ceramic or rubber lining for enhanced durability.
Easy Installation
Designed for simple integration and adjustment on-site.
Custom Sizes
Available in a wide range of diameters to suit various systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Stainless Steel, Mild Steel, Alloy |
| Adjustable Angle | 0° to 90° (or as per design) |
| Diameter Range | 50 mm to 1000 mm (custom sizes) |
| Lining Options | Ceramic, Rubber (optional) |
| Temperature | Up to 400°C (material dependent) |
Applications of Universal Bend
Pneumatic Conveying Systems
Bulk Material Handling
Dust Collection and Filtration Systems
Chemical and Food Processing Plants
Get Started Today - Explore Our Solutions!

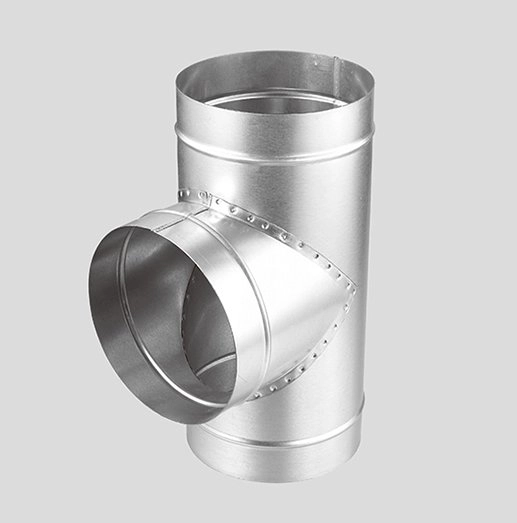

“T” Joint Pipe
Efficient Pipeline Branching for Bulk Material and Flour Flow
The “T” Joint Pipe is a critical pipe fitting used to create a branch or split in pipeline systems. It enables the division or combination of flour or material flows, facilitating flexible routing in pneumatic conveying, bulk material handling systems.
Key Features
Standardized Design
Compatible with various pipe sizes and connection types.
Durable Materials
Made from stainless steel, mild steel, or other corrosion-resistant alloys.
Smooth Internal Surfaces
Minimize turbulence and reduce material buildup.
Multiple End Connections
Available with flanged, welded, or threaded ends.
Custom Sizes and Angles
Tailored to specific system requirements.
Easy Installation and Maintenance
Designed for quick fitting and servicing.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Stainless Steel, Mild Steel, Alloy |
| Size Range | 50 mm to 1000 mm (custom sizes) |
| Connection Types | Flanged, Welded, Threaded |
| Pressure Rating | Up to 16 bar (depending on design) |
| Temperature Range | Up to 400°C (material dependent) |
Applications of “T” Joint Pipe
Pneumatic Conveying Systems
Bulk Material Handling
Chemical and Food Processing Plants
Dust Collection Systems
Get Started Today - Explore Our Solutions!

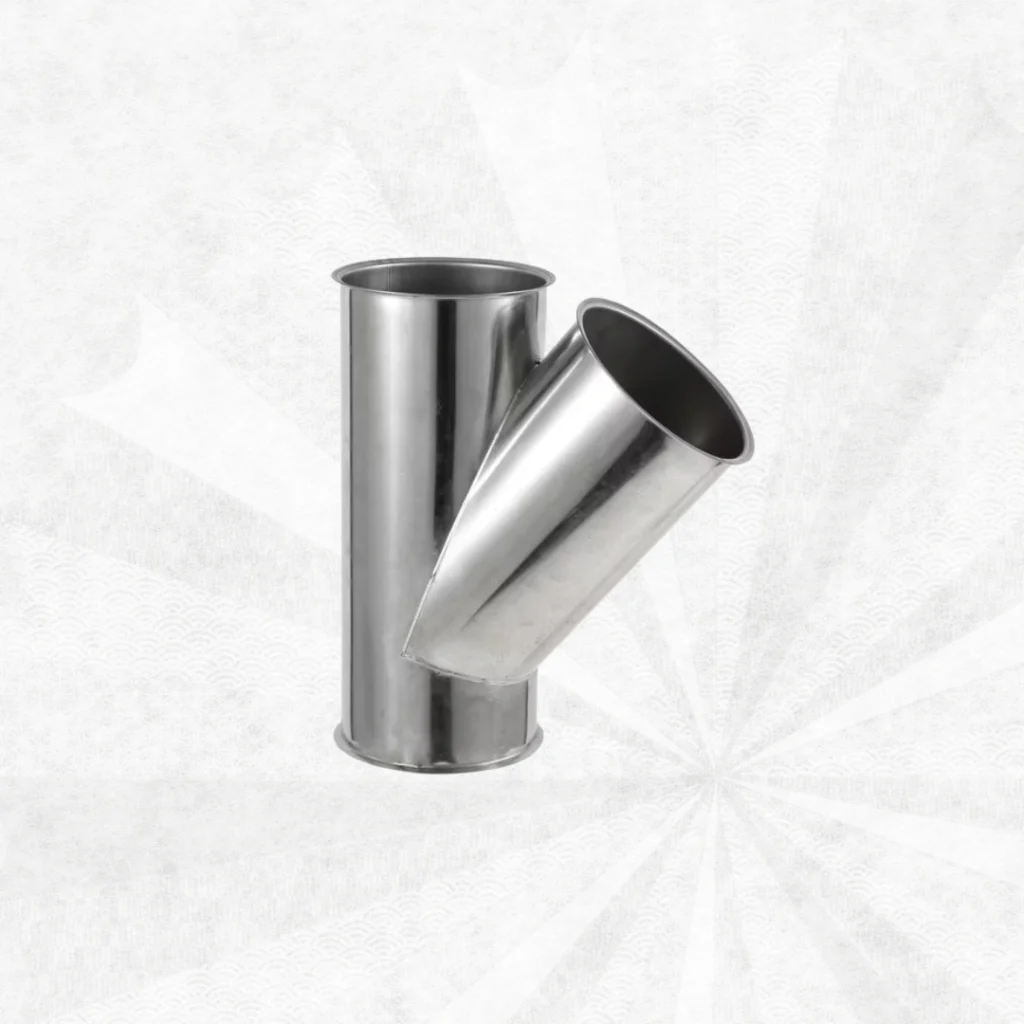

“Y” Joint Pipe
Smooth and Efficient Branching for Pipeline Systems
The “Y” Joint Pipe is designed to create a smooth, angled branch in pipeline systems, allowing the flow of materials to split or combine with minimal turbulence. Its streamlined design reduces pressure loss and wear, making it ideal for pneumatic conveying, bulk handling, and flour mill applications.
Key Features
Angled Design
Typically 45° angle branch to ensure smooth flow transition.
Durable Materials
Constructed from stainless steel, mild steel, or abrasion-resistant alloys.
Smooth Internal Surface
Minimizes turbulence and reduces material buildup.
Versatile End Connections
Available in flanged, welded, or threaded options.
Wide Size Range
Suitable for various pipeline diameters.
Custom Fabrication
Manufactured to meet specific system requirements.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Stainless Steel, Mild Steel, Alloy |
| Angle | Standard 45°, custom angles available |
| Size Range | 50 mm to 1000 mm (custom sizes) |
| Connection Types | Flanged, Welded, Threaded |
| Pressure Rating | Up to 16 bar (varies by design) |
| Temperature | Up to 400°C (material dependent) |
Applications of “Y” Joint Pipe
Pneumatic Conveying Systems
Bulk Material Handling
Chemical and Food Processing Plants
Dust Collection and Filtration
Get Started Today - Explore Our Solutions!

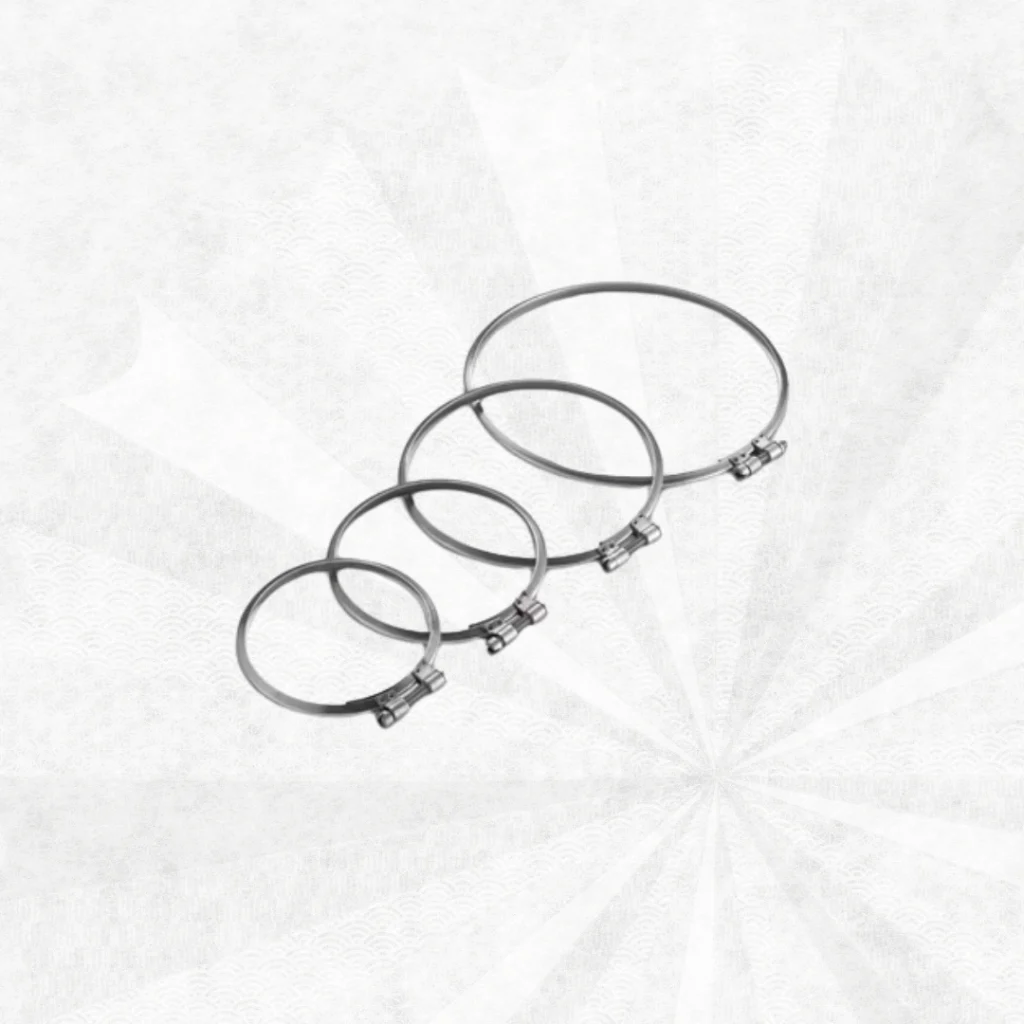

Clamp Tension Ring
Secure and Reliable Sealing Solution for Spout Connections
The Clamp Tension Ring is a precision-engineered component designed to provide a tight, secure seal for spout pipe connections in pneumatic conveying and bulk material handling systems. It ensures leak-proof joints, prevents material loss, and facilitates quick assembly and disassembly for maintenance.
Key Features
Robust Construction
Made from high-quality stainless steel or carbon steel for strength and corrosion resistance.
Uniform Clamping Force
Provides consistent tension around the spout pipe flange to ensure a tight seal.
Quick Assembly and Disassembly
Designed for easy installation and removal without specialized tools.
Vibration Resistant
Maintains sealing integrity under vibration and dynamic conditions.
Custom Sizes
Available in various diameters to suit different spout pipe sizes.
Low Maintenance
Durable design minimizes wear and replacement frequency.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Stainless Steel, Carbon Steel, Mild Steel |
| Size Range | Customizable to fit spout pipes |
| Surface Finish | Polished or coated options |
| Temperature Range | Up to 300°C (material dependent) |
| Application | Pneumatic conveying, bulk material handling systems |
Applications of Clamp Tension Ring
Spout pipe connections in pneumatic conveying lines
Bulk material transfer systems
Dust collection spouts
Food processing and chemical industry pipelines
Get Started Today - Explore Our Solutions!
